Transient Voltage Suppressors (TVS)
Lumimax is committed to providing excellent TVS Diode solutions for your transient and surge protection need. Our TVS Diodes satisfy the toughest requirements for a low clamping device and superior performance in all applications. From Axial, Surface Mount Device (SMD) package to Low profile SMD package, power rating from 200W to 6600W, we have a wide Voltage ranges for all kinds of application. Besides, our TVS Diodes have the fastest response time and are excellent for downstream, primary and secondary protection. Automotive grade, AEC-Q101 qualified YVS Diode series is also available for the automotive applications. Please refer to below selection tables for detail specification or email to sales@lumimaxusa.com for more information. Thank you.
TVS Series | Peak Pulse Power | Package | VRWM Range | Uni/Bi Direction | |
|---|---|---|---|---|---|
 | P2FL series | 200W | SOD-323FL | 5~220V | Yes |
| SMF series | 200W | SOD-123FL | 7~220V | Yes |
| P4FL series | 400W | SOD-123FL | 5~170V | Yes |
| SMAJ series | 400W | DO-214AC (SMA) | 5~440V | Yes |
| P4KE series | 400W | DO-41 | 5.8~513V | Yes |
| SMA6J series | 600W | DO-214AC (SMA) | 5~440V | Yes |
| SMBJ series | 600W | DO-214AA (SMB) | 6~440V | Yes |
| P6KE series | 600W | DO-15 | 5.8~513V | Yes |
| SMCJ series | 1500W | DO-214AB (SMC) | 5~440V | Yes |
| 1.5KE series | 1500W | DO-201AE | 5.8~512V | Yes |
| SMDJ series | 3000W | DO-214AB (SMC) | 5~440V | Yes |
| 3KP seires | 3000W | P-600 | 5~440V | Yes |
| 5.0SMDJ series | 5000W | DO-214AB (SMC) | 11~440V | Yes |
| 5KP series | 5000W | P-600 | 5~440V | Yes |
| SM8S series | 6600W | DO-218AB | 10~64V | Yes |
Low clamping and Low Profile LTS series
LTS Series | Peak Pulse Power | Package | |
|---|---|---|---|
| SMD 400W 2-VDFN series | 400W | SOD-323HE (2614) |

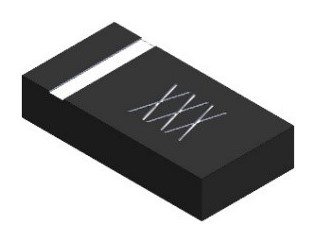

| SMD 600W 2-VDFN series | 600W | SOD-123HE (3719) |
| SMD 800W 2-VDFN series | 800W | SOD-123HE (3719) |
