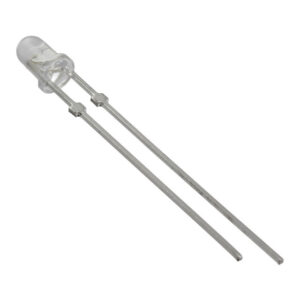

LED3 series

3mm LED, Clear lens, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED3BLU Blue 450~455nm 4500mcd ~ 5500mcd 3.2V 20mA 30°


	 LED3GRE Green 515~525nm 7000mcd ~ 9000mcd 3.2V 20mA 30°


	 LED3ORG Orange 602~610nm 1000mcd ~ 1500mcd 2.2V 20mA 30°


	 LED3PIN Pink - 1000mcd ~1500mcd 3.2V 20mA 30°


	 LED3RED Red 620~625nm 1000mcd ~ 1200mcd 2.2V 20mA 30°


	 LED3WAW White, Warm 2800~3000K 6000mcd ~ 7000mcd 3.2V 20mA 30°


	 LED3WHI White 6000~9000K 6000mcd ~ 8000mcd 3.2V 20mA 30°


	 LED3YEL Yellow 588~592nm 800mcd ~ 1000mcd 2.2V 20mA 30°


	 LED3YGR Yellow-Green 570~575nm 500mcd ~ 700mcd 2.2V 20mA 30°


	 LED3-PUR420 Purple 415~430nm 100mcd ~ 300mcd 3.4V 20mA 30°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED3BLU	Blue	450~455nm	4500mcd ~ 5500mcd	3.2V	20mA	30°
LED3GRE	Green	515~525nm	7000mcd ~ 9000mcd	3.2V	20mA	30°
LED3ORG	Orange	602~610nm	1000mcd ~ 1500mcd	2.2V	20mA	30°
LED3PIN	Pink	-	1000mcd ~1500mcd	3.2V	20mA	30°
LED3RED	Red	620~625nm	1000mcd ~ 1200mcd	2.2V	20mA	30°
LED3WAW	White, Warm	2800~3000K	6000mcd ~ 7000mcd	3.2V	20mA	30°
LED3WHI	White	6000~9000K	6000mcd ~ 8000mcd	3.2V	20mA	30°
LED3YEL	Yellow	588~592nm	800mcd ~ 1000mcd	2.2V	20mA	30°
LED3YGR	Yellow-Green	570~575nm	500mcd ~ 700mcd	2.2V	20mA	30°
LED3-PUR420	Purple	415~430nm	100mcd ~ 300mcd	3.4V	20mA	30°

LED3 Flashing Series

3 mm, LED, Clear lens, Round top, Flashing, Through hole




	 Lumimax PN Color Wavelength Flashing Frequency Voltage - Forward Current Viewing Angle




	 LED3RGBFF RGB R: 620nm

G: 520nm

B: 465nm 12.5 ± 20% Hz R: 2.3

G: 3.2

B: 3.2 20mA 30°


	 LED3RGBSF RGB R: 620nm

G: 520nm

B: 465nm 1.07 ± 30% Hz 3.5 20mA 120°


	 LED3WHIF White 6000~8000k 1.3 ~ 1.7Hz 3.2 20mA 45°

Lumimax PN	Color	Wavelength	Flashing Frequency	Voltage - Forward	Current	Viewing Angle
LED3RGBFF	RGB	R: 620nm G: 520nm B: 465nm	12.5 ± 20% Hz	R: 2.3 G: 3.2 B: 3.2	20mA	30°
LED3RGBSF	RGB	R: 620nm G: 520nm B: 465nm	1.07 ± 30% Hz	3.5	20mA	120°
LED3WHIF	White	6000~8000k	1.3 ~ 1.7Hz	3.2	20mA	45°

LED5 series

5mm, Clear lens, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED5BLU Blue 450~455nm 7000mcd ~ 8000mcd 3.2V 20mA 30°


	 LED5GRE Green 515~525nm 15000mcd ~ 18000mcd 3.2V 20mA 30°


	 LED5ORG Orange 602~610nm 1500mcd ~ 2000mcd 2.2V 20mA 30°


	 LED5PIN Pink - 7000mcd ~ 8000mcd 3.2V 20mA 30°


	 LED5RED Red 620~625nm 2000mcd ~ 3000mcd 2.2V 20mA 30°


	 LED5WAW White, Warm 2800~3000K 14000mcd ~ 16000mcd 3.2V 20mA 30°


	 LED5WHI White 6000~9000K 12000mcd ~ 14000mcd 3.2V 20mA 30°


	 LED5YEL Yellow 588~592nm 1500mcd ~ 2000mcd 2.2V 20mA 30°


	 LED5YGR Yellow-Green 570~575nm 500mcd ~ 700mcd 2.2V 20mA 30°


	 LED5-PUR420 Purple 415~425nm 200mcd ~ 500mcd 3.4V 20mA 30°


	 LED5-VIO420 Violet 415~425nm 200mcd ~ 500mcd 3.4V 20mA 30°


	 LED5-UV400 UV 395~400nm 300mcd ~ 400mcd 3.4V 20mA 30°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED5BLU	Blue	450~455nm	7000mcd ~ 8000mcd	3.2V	20mA	30°
LED5GRE	Green	515~525nm	15000mcd ~ 18000mcd	3.2V	20mA	30°
LED5ORG	Orange	602~610nm	1500mcd ~ 2000mcd	2.2V	20mA	30°
LED5PIN	Pink	-	7000mcd ~ 8000mcd	3.2V	20mA	30°
LED5RED	Red	620~625nm	2000mcd ~ 3000mcd	2.2V	20mA	30°
LED5WAW	White, Warm	2800~3000K	14000mcd ~ 16000mcd	3.2V	20mA	30°
LED5WHI	White	6000~9000K	12000mcd ~ 14000mcd	3.2V	20mA	30°
LED5YEL	Yellow	588~592nm	1500mcd ~ 2000mcd	2.2V	20mA	30°
LED5YGR	Yellow-Green	570~575nm	500mcd ~ 700mcd	2.2V	20mA	30°
LED5-PUR420	Purple	415~425nm	200mcd ~ 500mcd	3.4V	20mA	30°
LED5-VIO420	Violet	415~425nm	200mcd ~ 500mcd	3.4V	20mA	30°
LED5-UV400	UV	395~400nm	300mcd ~ 400mcd	3.4V	20mA	30°

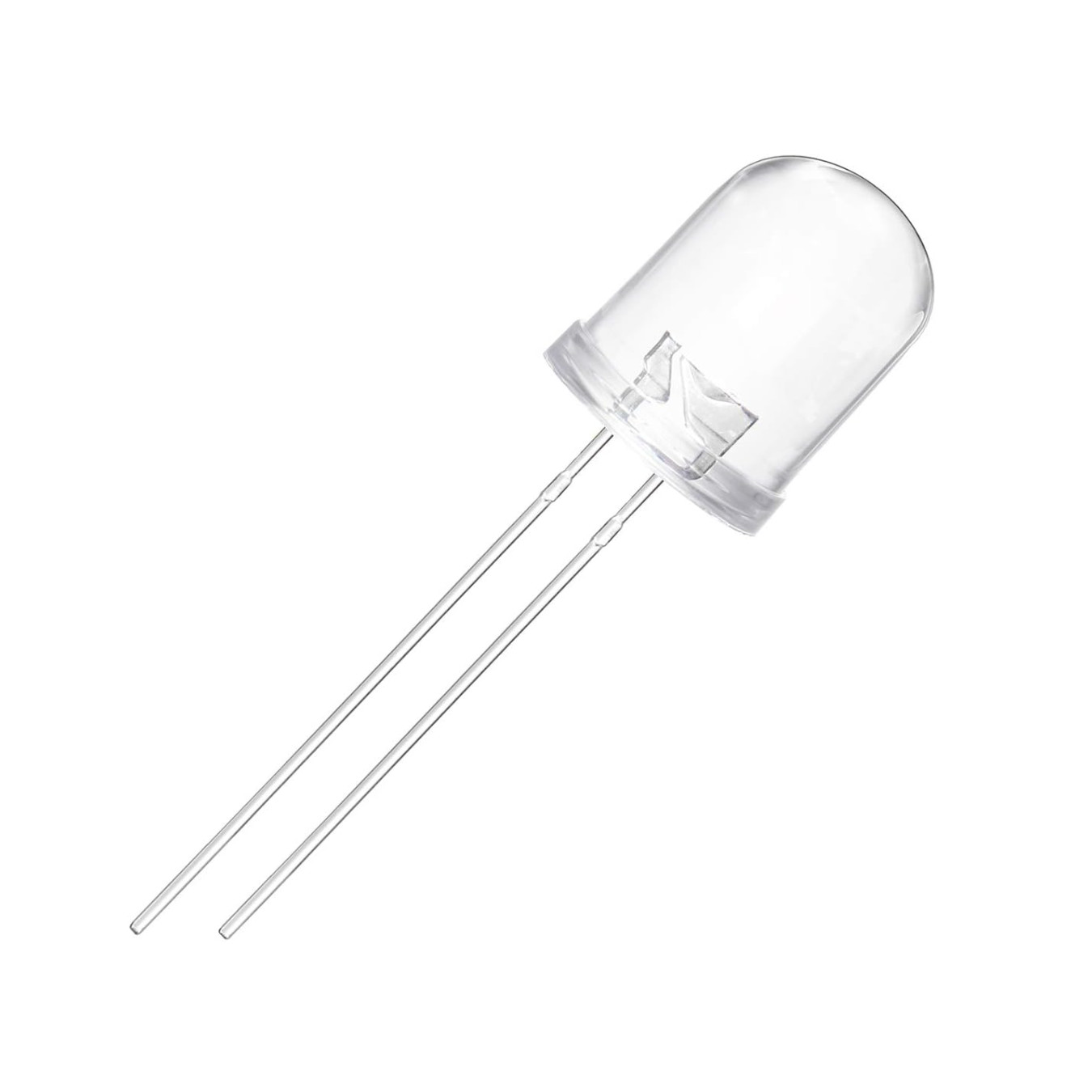

LED10 series

10mm, LED, Clear lens, Round top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED10BLU Blue 460~470nm 12000mcd ~ 14000mcd 3.2 20mA 25°


	 LED10GRE Green 520~530nm 20000mcd ~ 25000mcd 3.2 20mA 25°


	 LED10RED Red 620~630nm 4000mcd ~ 5000mcd 2.2 20mA 25°


	 LED10WHI White 6000~7000k 16000mcd 3.4 20mA 35°


	 LED10YEL Yellow 590~595nm 4000mcd ~ 5000mcd 2.4 20mA 20°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED10BLU	Blue	460~470nm	12000mcd ~ 14000mcd	3.2	20mA	25°
LED10GRE	Green	520~530nm	20000mcd ~ 25000mcd	3.2	20mA	25°
LED10RED	Red	620~630nm	4000mcd ~ 5000mcd	2.2	20mA	25°
LED10WHI	White	6000~7000k	16000mcd	3.4	20mA	35°
LED10YEL	Yellow	590~595nm	4000mcd ~ 5000mcd	2.4	20mA	20°

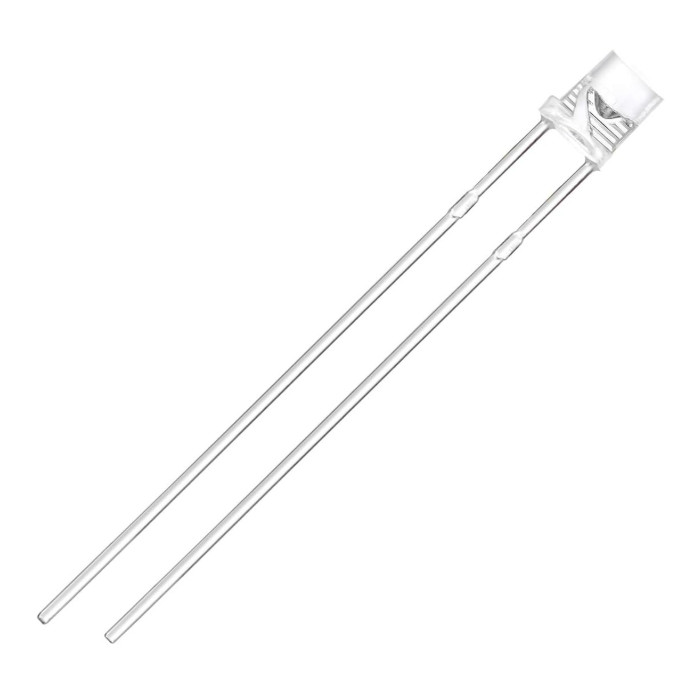

LED3F series

3mm, LED, Clear lens, Flat top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED3FBLU Blue 460~463nm 300mcd ~ 400mcd 3.2V 20mA 120°


	 LED3FGRE Green 520~525nm 1200mcd ~ 1400mcd 3.2V 20mA 120°


	 LED3FRED Red 620~625nm 600mcd ~ 800mcd 2.2V 20mA 120°


	 LED3FWAW Warm White 3000K 1200mcd 3.1V 30mA 90°


	 LED3FWHI White 8000~10000k 1200mcd ~ 1500mcd 3.2V 20mA 100°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED3FBLU	Blue	460~463nm	300mcd ~ 400mcd	3.2V	20mA	120°
LED3FGRE	Green	520~525nm	1200mcd ~ 1400mcd	3.2V	20mA	120°
LED3FRED	Red	620~625nm	600mcd ~ 800mcd	2.2V	20mA	120°
LED3FWAW	Warm White	3000K	1200mcd	3.1V	30mA	90°
LED3FWHI	White	8000~10000k	1200mcd ~ 1500mcd	3.2V	20mA	100°

LED5F series

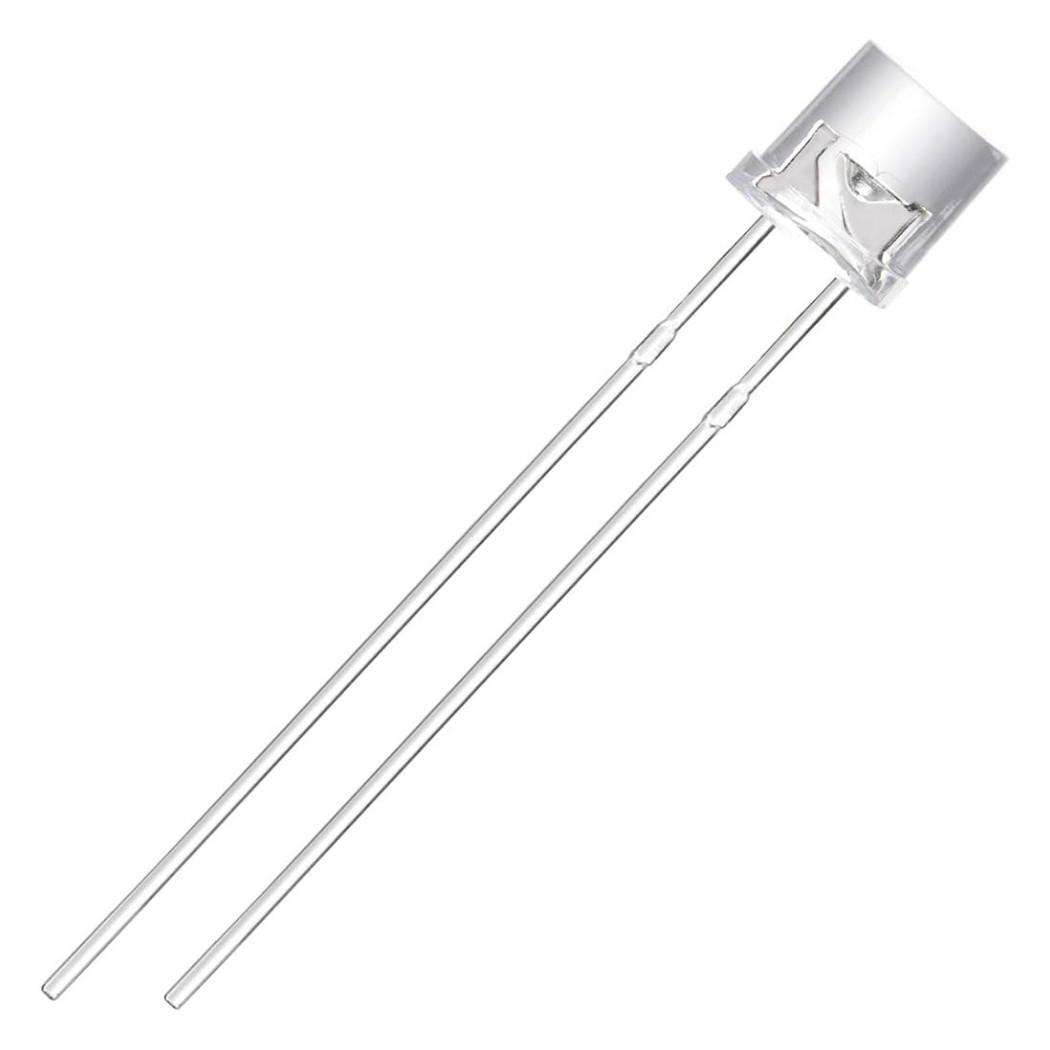

5mm, LED, Clear lens, Flat top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED5FBLU Blue 460~470nm 500mcd ~ 700mcd 3.2V 20mA 25°


	 LED5FRED Red 620~630nm 500mcd ~ 700mcd 2.2V 20mA 25°


	 LED5FWAW Warm White 2800~3200k 1000mcd ~ 1200mcd 3.4V 20mA 100°


	 LED5FWHI White 8000~10000k 1000mcd ~ 2000mcd 2.2V 20mA 25°


	 LED5FYEL Yellow 588~595nm 500mcd ~ 700mcd 2.2V 20mA 25°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED5FBLU	Blue	460~470nm	500mcd ~ 700mcd	3.2V	20mA	25°
LED5FRED	Red	620~630nm	500mcd ~ 700mcd	2.2V	20mA	25°
LED5FWAW	Warm White	2800~3200k	1000mcd ~ 1200mcd	3.4V	20mA	100°
LED5FWHI	White	8000~10000k	1000mcd ~ 2000mcd	2.2V	20mA	25°
LED5FYEL	Yellow	588~595nm	500mcd ~ 700mcd	2.2V	20mA	25°

LED234 series

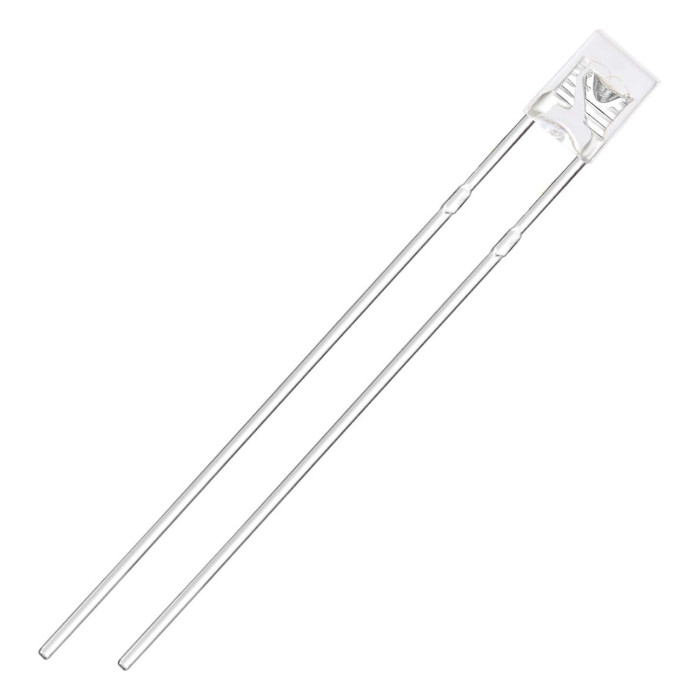

2x3x4 mm, LED, Clear lens, Rectangle with Flat top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED234BLU Blue 460~470nm 500mcd ~ 700mcd 3.2 20mA 100°


	 LED234GRE Green 520~530nm 2500mcd 3.2 20mA 25°


	 LED234RED Red 620~625nm 400mcd ~ 600mcd 2.2 20mA 100°


	 LED234WHI White 452nm 1200mcd 3.4 20mA 110°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LED234BLU	Blue	460~470nm	500mcd ~ 700mcd	3.2	20mA	100°
LED234GRE	Green	520~530nm	2500mcd	3.2	20mA	25°
LED234RED	Red	620~625nm	400mcd ~ 600mcd	2.2	20mA	100°
LED234WHI	White	452nm	1200mcd	3.4	20mA	110°

LED257 series

2x5x7 mm, LED, Clear lens, Rectangle with Flat top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LED257WHI White 7000~8000k 2000 ~ 3000mcd 3.4 20mA 100°

	Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
	LED257WHI	White	7000~8000k	2000 ~ 3000mcd	3.4	20mA	100°

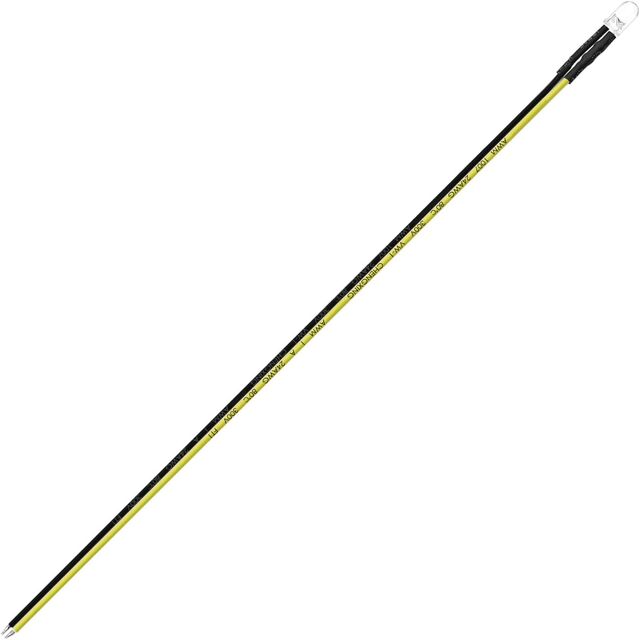

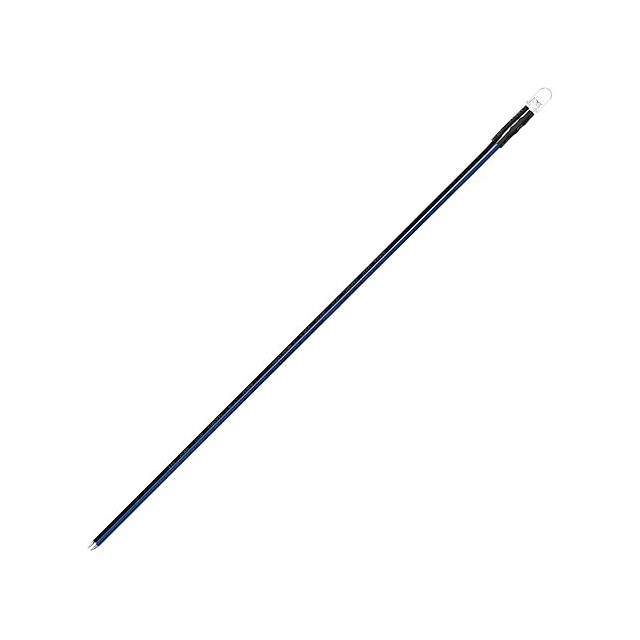

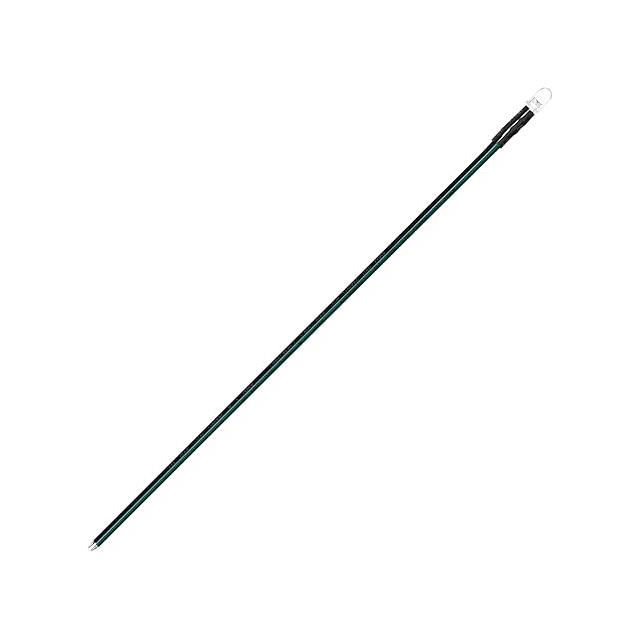

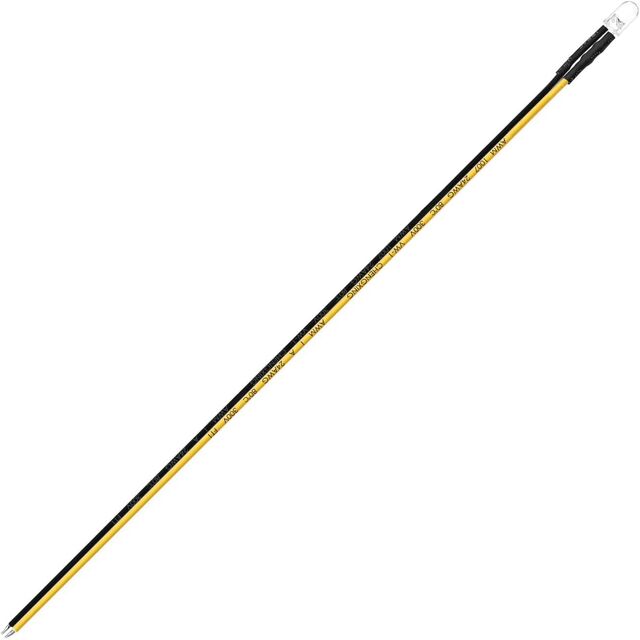

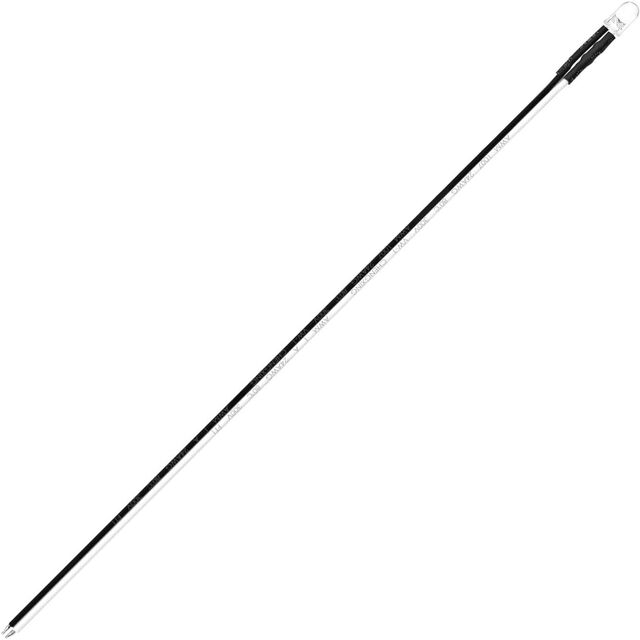

Lumimax Prewired 5mm LED, Clear Lens




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 WLED5C12WHI White 6000K ~ 9000K 12000mcd ~ 14000mcd 12V 20mA 30°


	 WLED5C12GRE Green 515nm 15000mcd ~ 18000mcd 12V 20mA 30°


	 WLED5C12YEL Yellow 588nm 1500mcd ~ 2000mcd 12V 20mA 30°


	 WLED5C12BLU Blue 455nm 7000mcd ~ 8000mcd 12V 20mA 30°


	 WLED5C12WAW White, Warm 3000K 14000mcd ~ 16000mcd 12V 20mA 30°


	 WLED5C12RED Red 620nm 2000mcd ~ 3000mcd 12V 20mA 30°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
WLED5C12WHI	White	6000K ~ 9000K	12000mcd ~ 14000mcd	12V	20mA	30°
WLED5C12GRE	Green	515nm	15000mcd ~ 18000mcd	12V	20mA	30°
WLED5C12YEL	Yellow	588nm	1500mcd ~ 2000mcd	12V	20mA	30°
WLED5C12BLU	Blue	455nm	7000mcd ~ 8000mcd	12V	20mA	30°
WLED5C12WAW	White, Warm	3000K	14000mcd ~ 16000mcd	12V	20mA	30°
WLED5C12RED	Red	620nm	2000mcd ~ 3000mcd	12V	20mA	30°

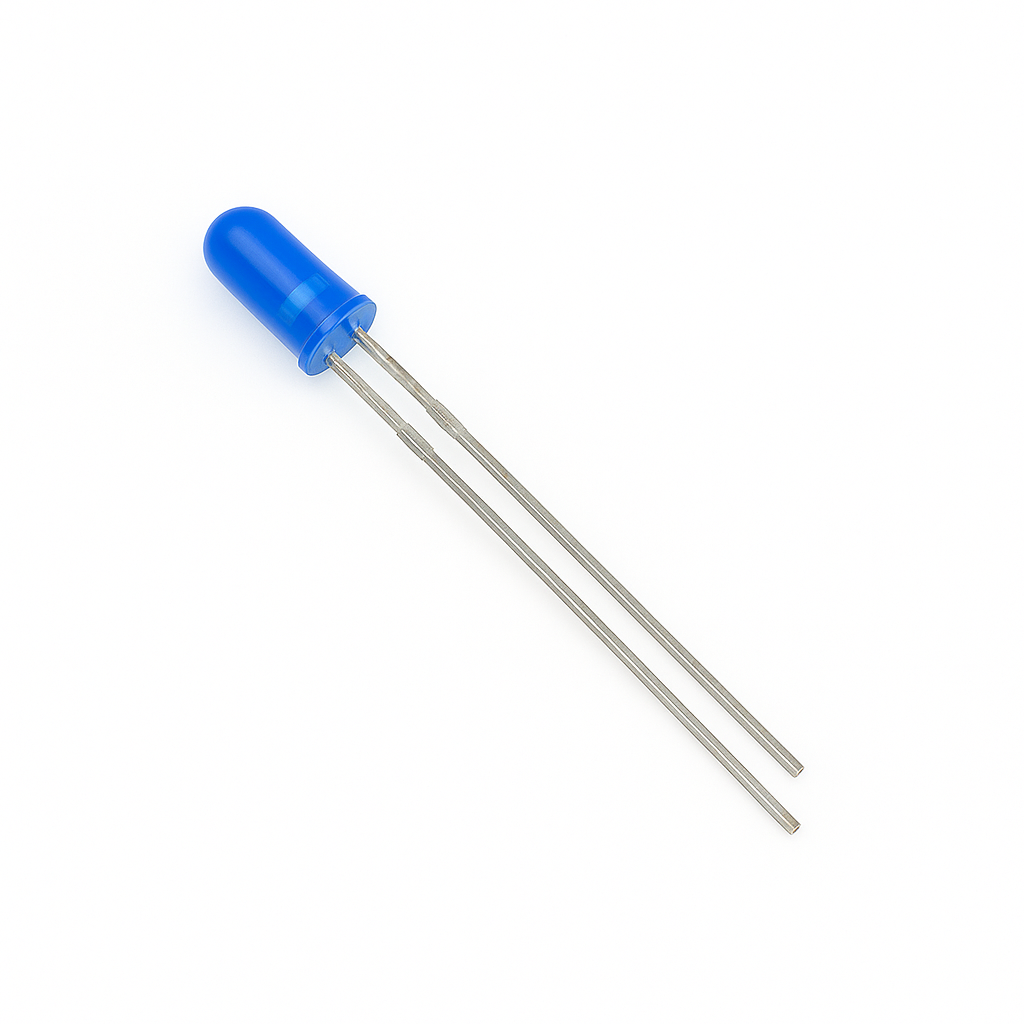

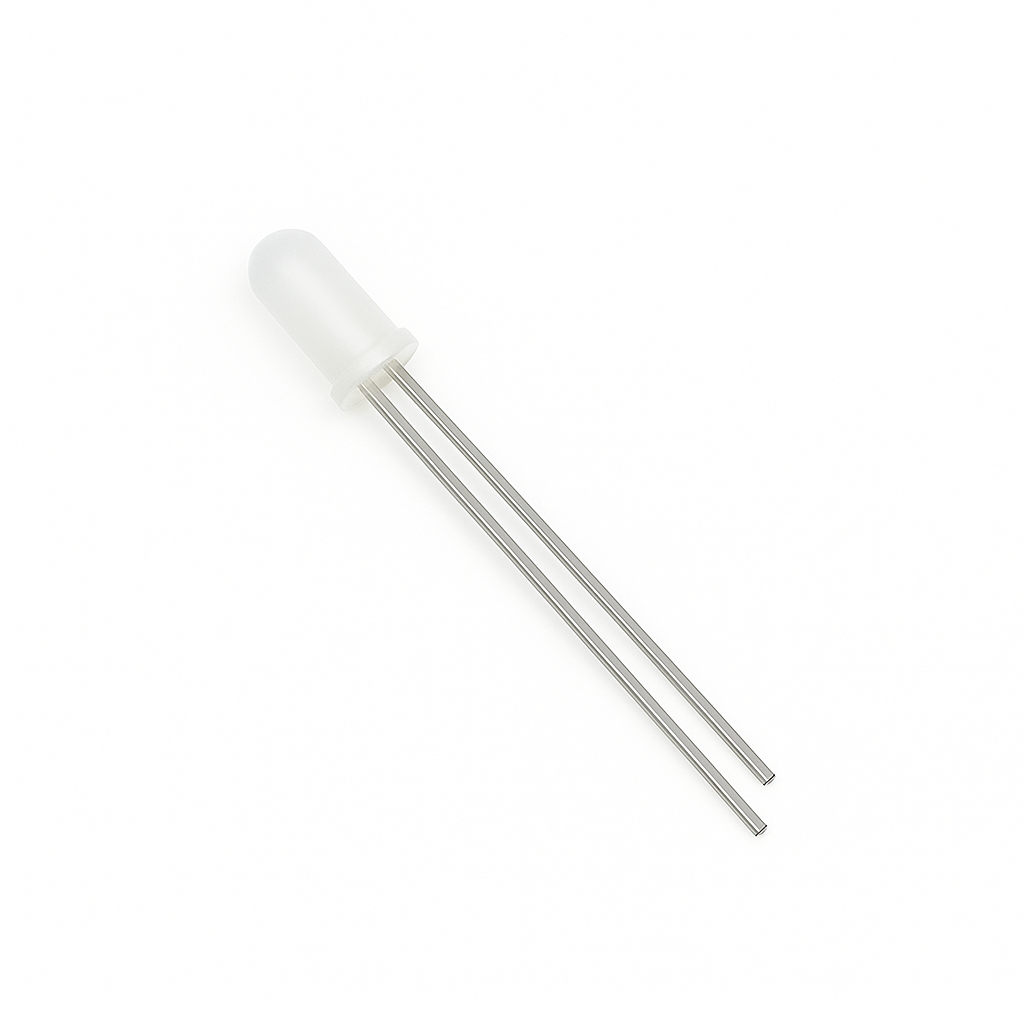

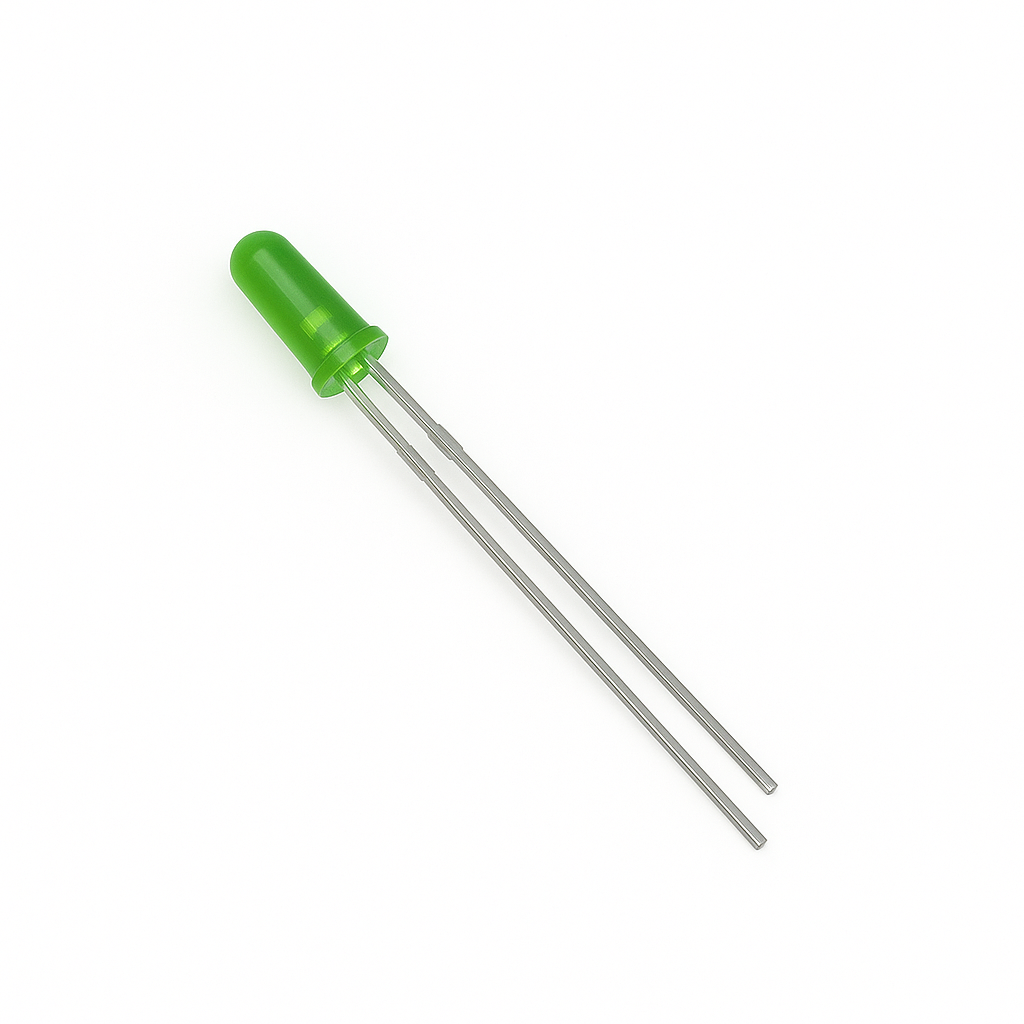

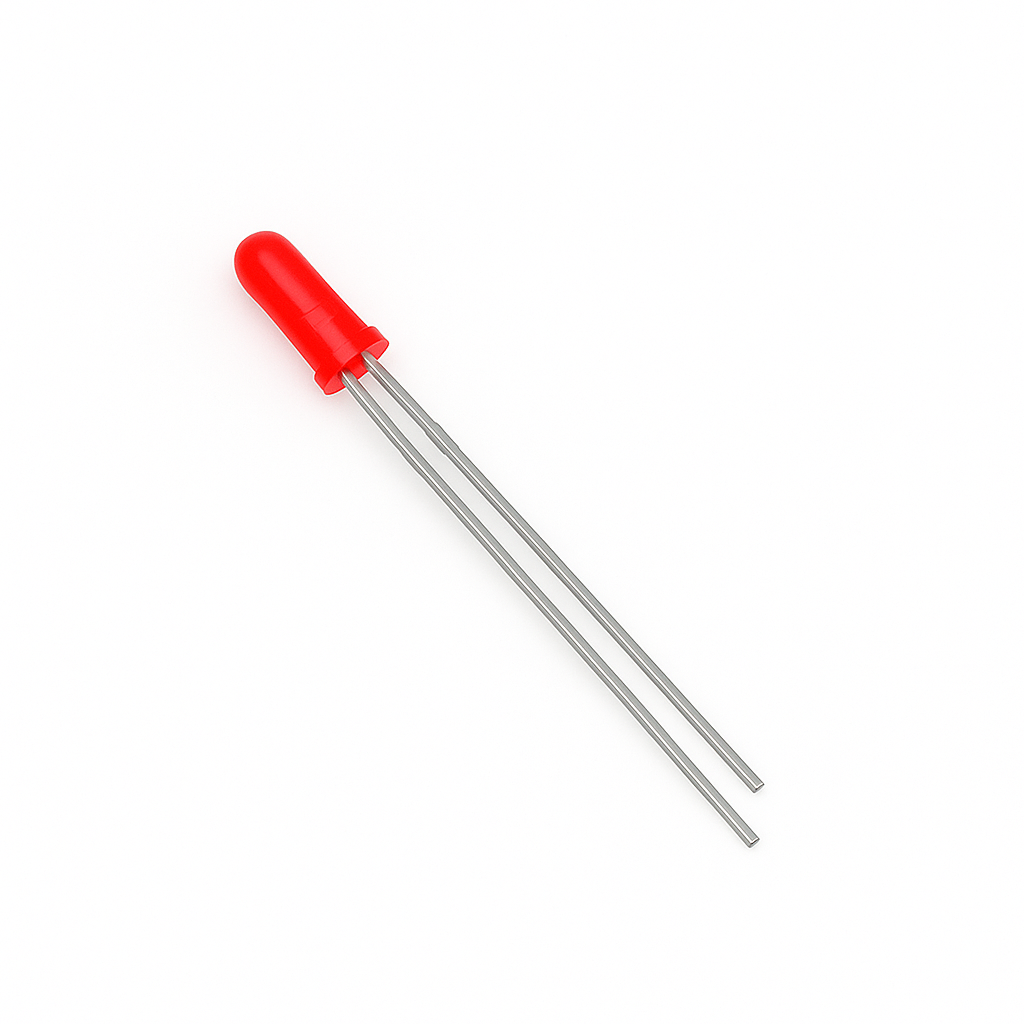

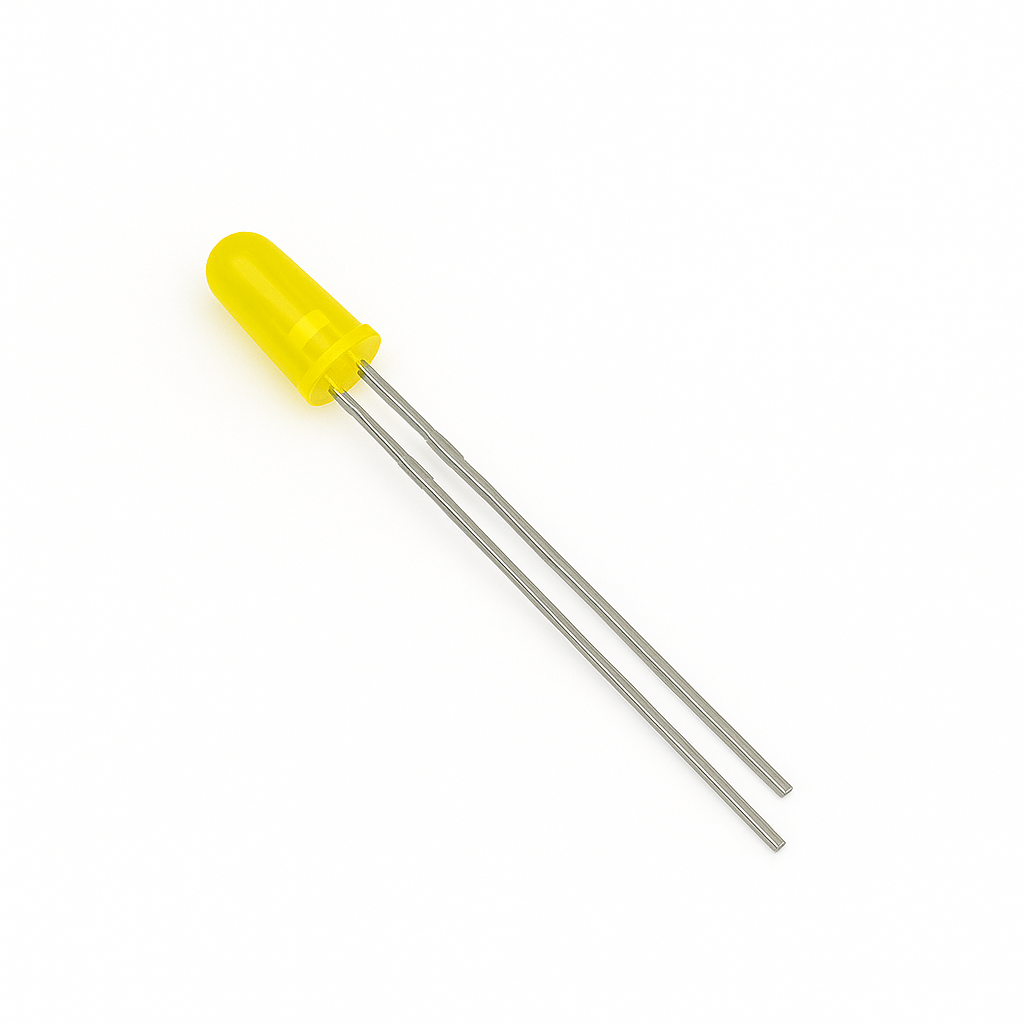

LEDDC-3 series

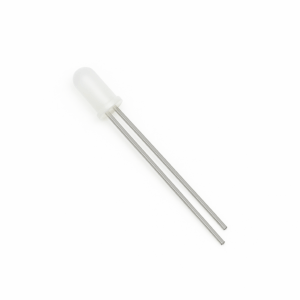

3mm LED, Diffused color, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LEDDC-3BLU Blue 460~470nm 600~800mcd 3.2V 20mA 30°


	 LEDDC-3GRE Green 520~525nm 3000~5000mcd 3.2V 20mA 30°


	 LEDDC-3RED Red 625~635nm 500~700mcd 2.2V 20mA 30°


	 LEDDC-3WHI White 8000~9000K 2000~3000mcd 3.2V 20mA 30°


	 LEDDC-3YEL Yellow 587~590nm 600~800mcd 2.2V 20mA 30°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LEDDC-3BLU	Blue	460~470nm	600~800mcd	3.2V	20mA	30°
LEDDC-3GRE	Green	520~525nm	3000~5000mcd	3.2V	20mA	30°
LEDDC-3RED	Red	625~635nm	500~700mcd	2.2V	20mA	30°
LEDDC-3WHI	White	8000~9000K	2000~3000mcd	3.2V	20mA	30°
LEDDC-3YEL	Yellow	587~590nm	600~800mcd	2.2V	20mA	30°

LEDDC-3 Flashing Serieshole

3 mm, LED, Diffused lens, Round top, Flashing, Through hole




	 Lumimax PN Color Wavelength Flashing Frequency Voltage - Forward Current Viewing Angle




	 LEDDC-3REDF Red 620nm 1.07 ± 30% Hz 3.5 20mA 40°

	Lumimax PN	Color	Wavelength	Flashing Frequency	Voltage - Forward	Current	Viewing Angle
	LEDDC-3REDF	Red	620nm	1.07 ± 30% Hz	3.5	20mA	40°

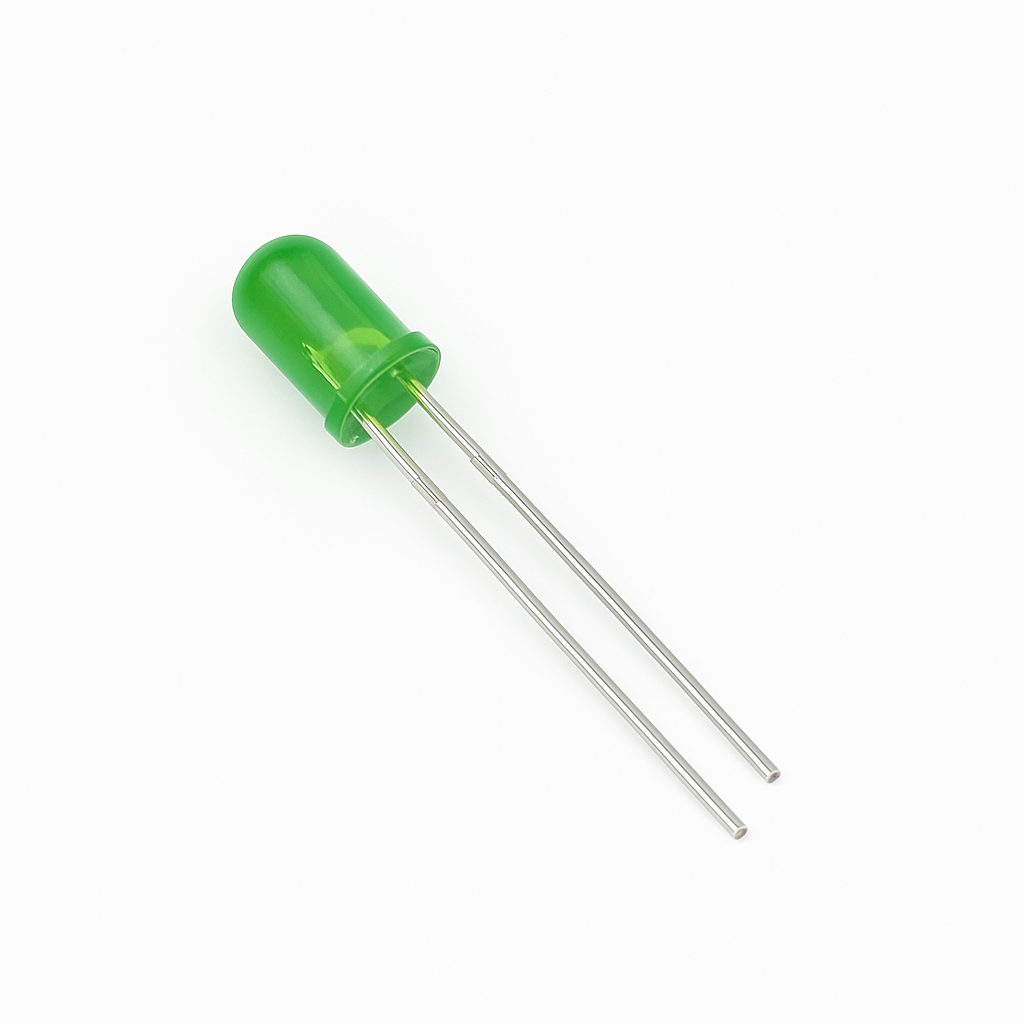

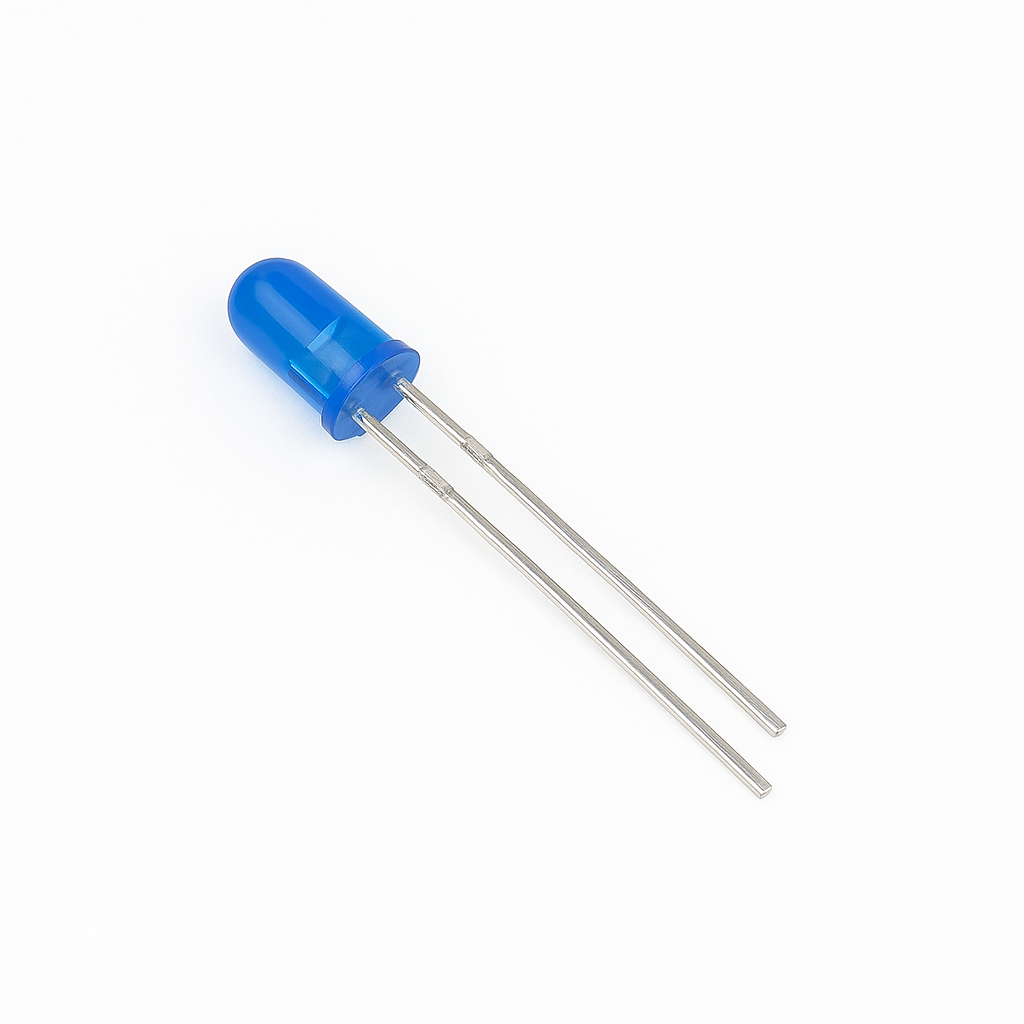

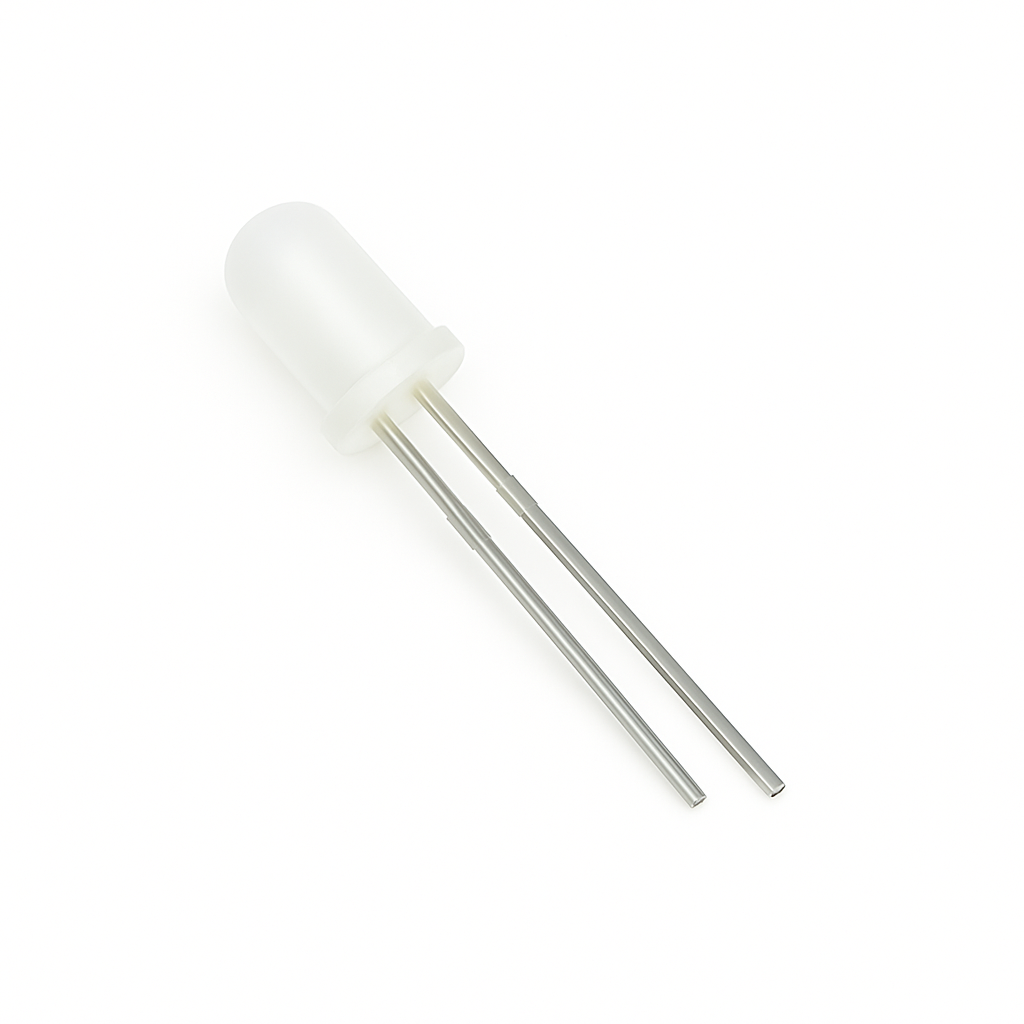

LEDDC-5 series

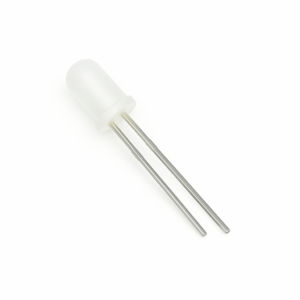

5mm LED, Diffused color, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LEDDC-5BLU Blue 460~470nm 1000~1500mcd 3.2V 20mA 30°


	 LEDDC-5GRE Green 520~525nm 5000~˙7000mcd 3.0V 30mA 30°


	 LEDDC-5RED Red 625~635nm 600~800mcd 2.2V 30mA 30°


	 LEDDC-5WHI White 8000~10000K 4000~5000mcd 3.2V 20mA 30°


	 LEDDC-5YEL Yellow 587~590nm 600~800mcd 2.2V 30mA 30°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LEDDC-5BLU	Blue	460~470nm	1000~1500mcd	3.2V	20mA	30°
LEDDC-5GRE	Green	520~525nm	5000~˙7000mcd	3.0V	30mA	30°
LEDDC-5RED	Red	625~635nm	600~800mcd	2.2V	30mA	30°
LEDDC-5WHI	White	8000~10000K	4000~5000mcd	3.2V	20mA	30°
LEDDC-5YEL	Yellow	587~590nm	600~800mcd	2.2V	30mA	30°

LEDDC-10 series

10mm, LED, Diffused lens, Round top, Through hole




	 Lumimax PN Color Wavelength Millicandela Rating Voltage - Forward Current Viewing Angle




	 LEDDC-10BLU Blue 460~470nm 1000~1500mcd 3.2V 20mA 25°


	 LEDDC-10GRE Green 520~530nm 4000~5000mcd 3.2V 20mA 25°


	 LEDDC-10RED Red 620~630nm 800~1000mcd 2.2V 20mA 25°


	 LEDDC-10WHI White 6000~7000K 2200~2600mcd 2V 20mA 25°


	 LEDDC-10YEL Yellow 588~593nm 800~1000mcd 2.2V 20mA 25°

Lumimax PN	Color	Wavelength	Millicandela Rating	Voltage - Forward	Current	Viewing Angle
LEDDC-10BLU	Blue	460~470nm	1000~1500mcd	3.2V	20mA	25°
LEDDC-10GRE	Green	520~530nm	4000~5000mcd	3.2V	20mA	25°
LEDDC-10RED	Red	620~630nm	800~1000mcd	2.2V	20mA	25°
LEDDC-10WHI	White	6000~7000K	2200~2600mcd	2V	20mA	25°
LEDDC-10YEL	Yellow	588~593nm	800~1000mcd	2.2V	20mA	25°

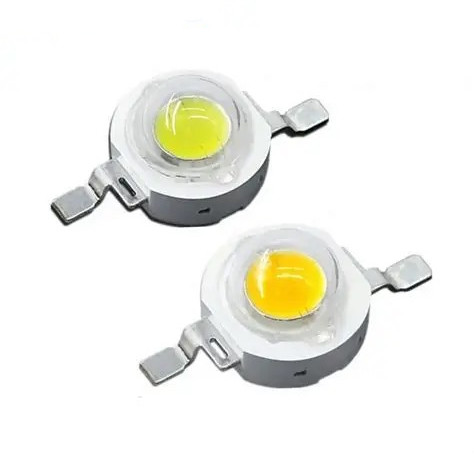

Lumimax High Power 1W COB K1 LED

10mm, LED, Diffused lens, Round top, Through hole




	 Lumimax P/N Color Wavelength Current Viewing Angle




	 L1W33-3250K Warm White 3000~3500K 350mA 140°


	 L1W33-4250K Neutral White 4000~4500K 350mA 140°


	 L1W33-6500K White 6000~7000K 350mA 140°


	 L1W33-13000K Cool White 10000~15000K 350mA 140°


	 L1W33-B463 Blue 460~465nm 350mA 140°


	 L1W33-G523 Green 520~525nm 350mA 140°


	 L1W33-R625 Red 620~630nm 350mA 140°

Lumimax P/N	Color	Wavelength	Current	Viewing Angle
L1W33-3250K	Warm White	3000~3500K	350mA	140°
L1W33-4250K	Neutral White	4000~4500K	350mA	140°
L1W33-6500K	White	6000~7000K	350mA	140°
L1W33-13000K	Cool White	10000~15000K	350mA	140°
L1W33-B463	Blue	460~465nm	350mA	140°
L1W33-G523	Green	520~525nm	350mA	140°
L1W33-R625	Red	620~630nm	350mA	140°

Lumimax High Power 3W COB K1 LED

10mm, LED, Diffused lens, Round top, Through hole




	 Lumimax P/N Color Wavelength Current Viewing Angle




	 L1W33-3250K Warm White 3000~3500K 350mA 140°


	 L1W33-4250K Neutral White 4000~4500K 350mA 140°


	 L1W33-6500K White 6000~7000K 350mA 140°


	 L1W33-13000K Cool White 10000~15000K 350mA 140°


	 L1W33-B463 Blue 460~465nm 350mA 140°


	 L1W33-G523 Green 520~525nm 350mA 140°


	 L1W33-R625 Red 620~630nm 350mA 140°

Lumimax P/N	Color	Wavelength	Current	Viewing Angle
L1W33-3250K	Warm White	3000~3500K	350mA	140°
L1W33-4250K	Neutral White	4000~4500K	350mA	140°
L1W33-6500K	White	6000~7000K	350mA	140°
L1W33-13000K	Cool White	10000~15000K	350mA	140°
L1W33-B463	Blue	460~465nm	350mA	140°
L1W33-G523	Green	520~525nm	350mA	140°
L1W33-R625	Red	620~630nm	350mA	140°

Lumimax High Power LED COB modules

10mm, LED, Diffused lens, Round top, Through hole




	 Lumimax P/N Color




	 L4WRGBW8 RGBW


	 L10W30-5250K White


	 L10W45-UV365 UV


	 L30W45-4250K Neutral White


	 L50W30-6250K White


	 L100W45-4250K Neutral White


	 L100W45-6500K White


	 L100W45-9000K Cool White


	 L100W45-B440 Blue


	 L100W45-IR850 IR


	 L100W45-R660 Red


	 L100W45-UV365 UV


	 L100W45-UV395 UV

	Lumimax P/N	Color
	L4WRGBW8	RGBW
	L10W30-5250K	White
	L10W45-UV365	UV
	L30W45-4250K	Neutral White
	L50W30-6250K	White
	L100W45-4250K	Neutral White
	L100W45-6500K	White
	L100W45-9000K	Cool White
	L100W45-B440	Blue
	L100W45-IR850	IR
	L100W45-R660	Red
	L100W45-UV365	UV
	L100W45-UV395	UV
