Switching Diode
- Fast switching speed for General Purpose Applications
- RoHS and REACH Compliance

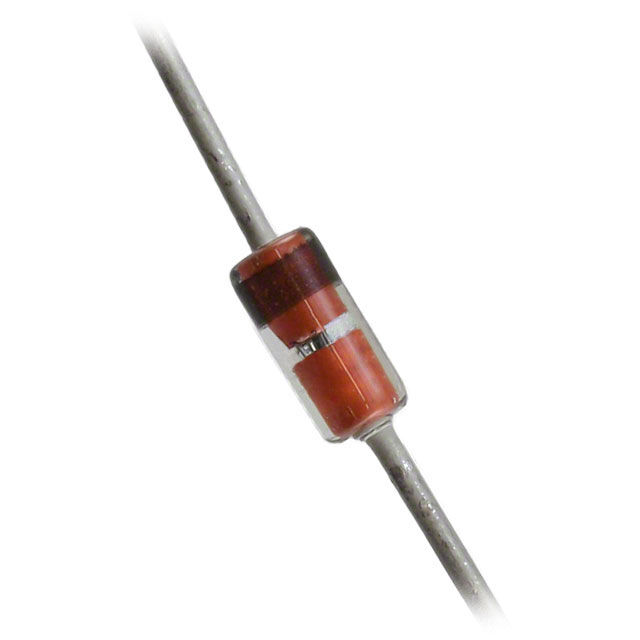

DO-35

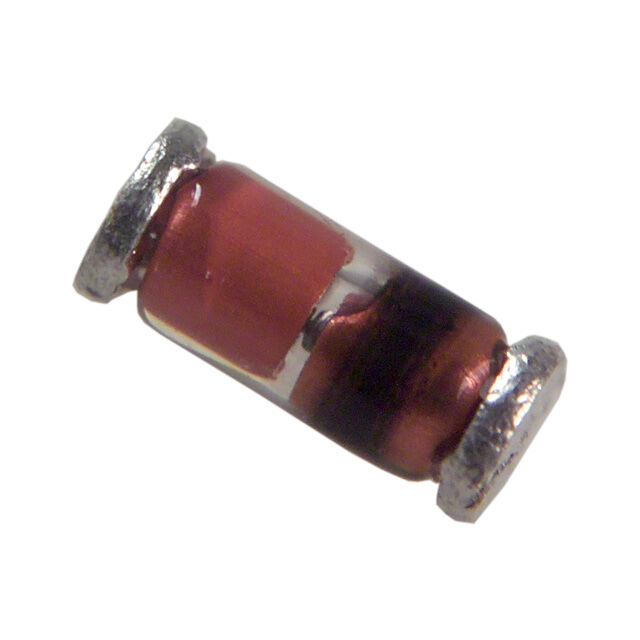

Mini-Melf

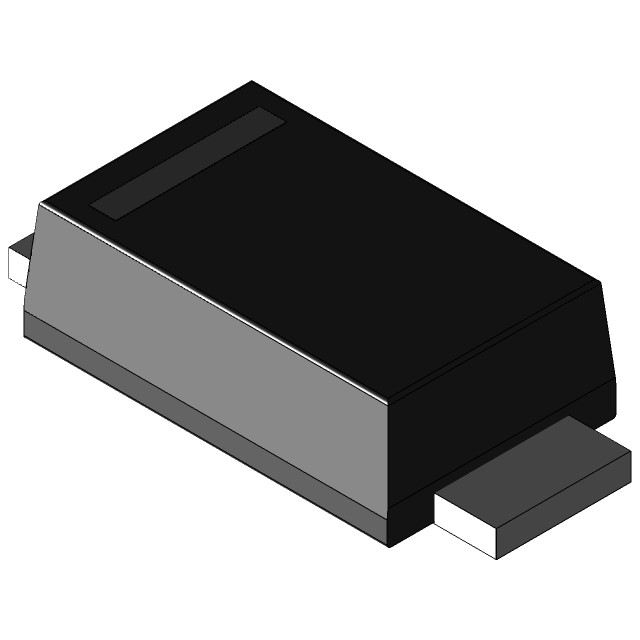

SOD-123FL

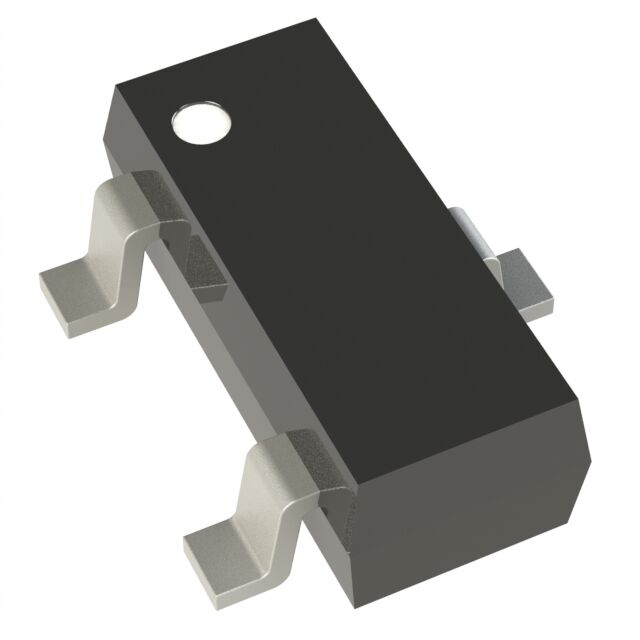

SOT-23
| Lumimax P/N | Non-repetitive Peak Reverse Voltage (Vrrm) | Forward Continuous Current (Ifm) | Mounting Type | Max Reverse Recovery Time | Package / Case | Operating and Junction Temperature ( ͦ C) | |
|---|---|---|---|---|---|---|---|
 | 1N4148 | 100V | 300mA | Through Hole | 4nS | DO-35 | -65~175 |
| LL4148 | 100V | 300mA | Surface Mount Device | 4nS | Mini-Melf | -65~175 |
| BAV99 | 70V | 200mA | Surface Mount Device | 6nS | SOT-23 | -55~150 |
| 1N4148WF | 100V | 300mA | Surface Mount Device | 15nS | SOD-123FL | -55~150 |
| MMBD914 | 100V | 300mA | Surface Mount Device | 4nS | SOT-23 | -55~150 |
