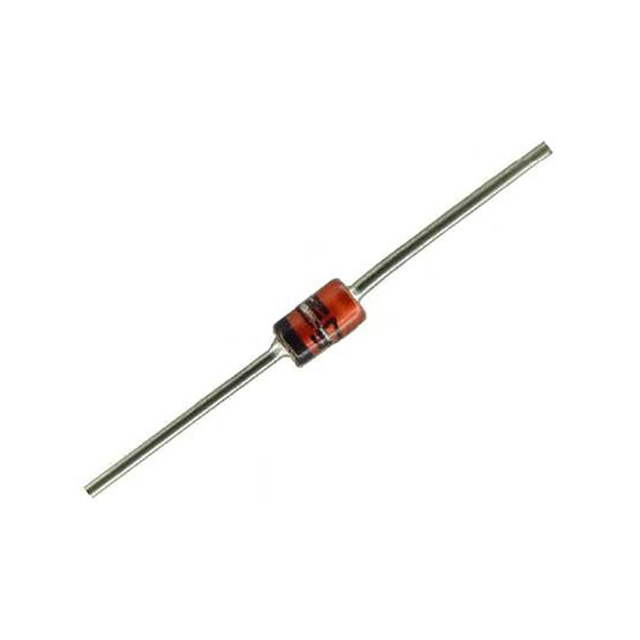

Zener Diode


Lumimax PN
Voltage (Vz)
Tolerance
Impedance (Max) (Zzt)
Current - Reverse Leakage @ Vr
Forward Voltage (Vf)





1N4736A
6.8 V
±5%
3.5 Ohms
10 µA @ 4 V
1.2 V @ 200 mA



1N4743A
13 V
±5%
10 Ohms
5 µA @ 9.9 V
1.2 V @ 200 mA



1N4742A
12 V
±5%
9 Ohms
5 µA @ 9.1 V
1.2 V @ 200 mA



1N4752A
33 V
±5%
45 Ohms
5 µA @ 25.1 V
1.2 V @ 200 mA



1N4732A
4.7 V
±5%
8 Ohms
10 µA @ 1 V
1.2 V @ 200 mA



1N4753A
36 V
±5%
50 Ohms
5 µA @ 27.4 V
1.2 V @ 200 mA



1N4729A
3.6 V
±5%
10 Ohms
100 µA @ 1 V
1.2 V @ 200 mA



1N4739A
9.1 V
±5%
5 Ohms
10 µA @ 7 V
1.2 V @ 200 mA



1N4750A
27 V
±5%
35 Ohms
5 µA @ 20.6 V
1.2 V @ 200 mA



1N4751A
30 V
±5%
40 Ohms
5 µA @ 22.8 V
1.2 V @ 200 mA



1N4749A
24 V
±5%
25 Ohms
5 µA @ 18.2 V
1.2 V @ 200 mA



1N4730A
3.9 V
±5%
9 Ohms
50 µA @ 1 V
1.2 V @ 200 mA



1N4746A
18 V
±5%
20 Ohms
5 µA @ 13.7 V
1.2 V @ 200 mA



1N4728A
3.3 V
±5%
10 Ohms
100 µA @ 1 V
1.2 V @ 200 mA



1N4747A
20 V
±5%
22 Ohms
5 µA @ 15.2 V
1.2 V @ 200 mA



1N4748A
22 V
±5%
23 Ohms
5 µA @ 16.7 V
1.2 V @ 200 mA



1N4754A
39 V
±5%
60 Ohms
5 µA @ 29.7 V
1.2 V @ 200 mA



1N4731A
4.3 V
±5%
9 Ohms
10 µA @ 1 V
1.2 V @ 200 mA



1N4740A
10 V
±5%
7 Ohms
10 µA @ 7.6 V
1.2 V @ 200 mA



1N4733A
5.1 V
±5%
7 Ohms
10 µA @ 1 V
1.2 V @ 200 mA



1N4745A
16 V
±5%
16 Ohms
5 µA @ 12.2 V
1.2 V @ 200 mA



1N4735A
6.2 V
±5%
2 Ohms
10 µA @ 3 V
1.2 V @ 200 mA



1N4737A
7.5 V
±5%
4 Ohms
10 µA @ 5 V
1.2 V @ 200 mA



1N4738A
8.2 V
±5%
4.5 Ohms
10 µA @ 6 V
1.2 V @ 200 mA



1N4741A
11 V
±5%
8 Ohms
5 µA @ 8.4 V
1.2 V @ 200 mA
