General Purpose Rectifiers, 50V ~ 1000V, SMD and Through Hole Device

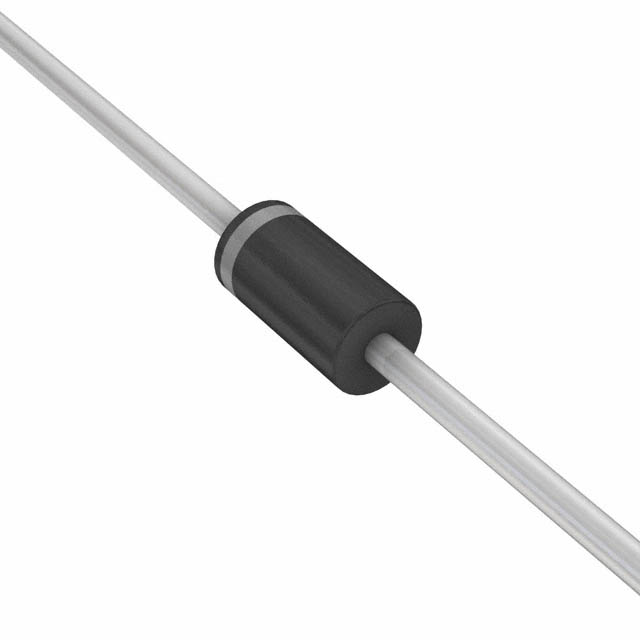

DO-41

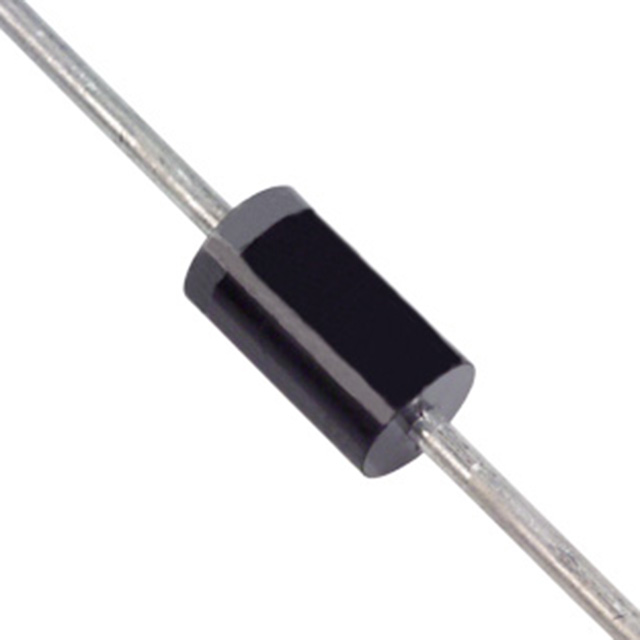

DO-201

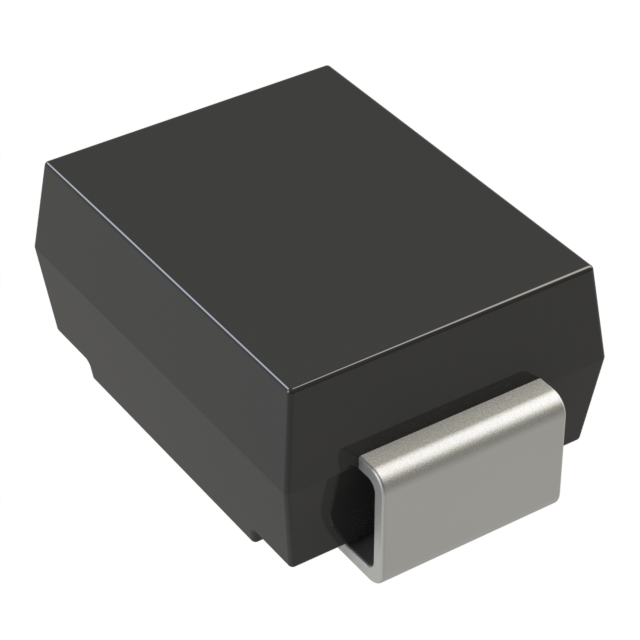

DO-214
SOD-123FL
| Lumimax P/N | Reverse Voltage (Vr) | Current - (Io) | Mounting Type | Package / Case | Package | |
|---|---|---|---|---|---|---|
 | 1N4001 | 50 V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4002 | 100V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4003 | 200 V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4004 | 400 V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4005 | 600V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4006 | 800V | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N4007 | 1KV | 1A | Through Hole | DO-204AL, DO-41 | Tape & Reel |
| 1N5400 | 50V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5401 | 100 V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5402 | 200 V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5404 | 400 V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5406 | 600V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5407 | 800V | 3A | Through Hole | DO-201AD | Tape & Reel |
| 1N5408 | 1KV | 3A | Through Hole | DO-201AD | Tape & Reel |
| S1A | 50V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1B | 100V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1D | 200V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1G | 400V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1J | 600V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1K | 800V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| S1M | 1000V | 1A | SMD | DO-214AC, SMA | Tape & Reel |
| GS1000FL | 50V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1001FL | 100V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1002FL | 200V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1004FL | 400V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1006FL | 600V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1008FL | 800V | 1A | SMD | SOD-123FL | Tape & Reel |
| GS1010FL | 1000V | 1A | SMD | SOD-123FL | Tape & Reel |
