T12 Series - Lumimax Optoelectronics Technology

Lumimax Part Number	Quadrant	IT(RMS)(A)	VDRM/VRRM(V)	IGT [I-III](mA)	IGT [IV](mA)	VTM at 25°C(V)	TJ Max.(°C)	Package

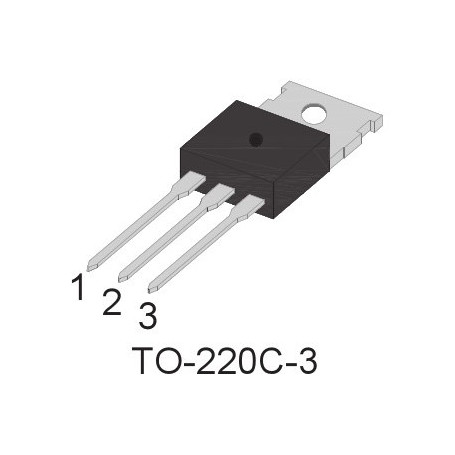

T1205-12C	3	12	1200	5		1.5	150	TO-220C-3
T1205-12E	3	12	1200	5		1.5	150	TO-220E-3
T1205-12EI	3	12	1200	5		1.5	150	TO-220E-3(Ins)
T1205-12T	3	12	1200	5		1.5	150	TO-220AB
T1205-12TD	3	12	1200	5		1.5	150	TO-263
T1205-12TF	3	12	1200	5		1.5	150	ITO-220AB
T1205-600C	3	12	600	5		1.5	150	TO-220C-3
T1205-600E	3	12	600	5		1.5	150	TO-220E-3
T1205-600EI	3	12	600	5		1.5	150	TO-220E-3(Ins)
T1205-600T	3	12	600	5		1.5	150	TO-220AB
T1205-600TD	3	12	600	5		1.5	150	TO-263
T1205-600TF	3	12	600	5		1.5	150	ITO-220AB
T1205-800C	3	12	800	5		1.5	150	TO-220C-3
T1205-800E	3	12	800	5		1.5	150	TO-220E-3
T1205-800EI	3	12	800	5		1.5	150	TO-220E-3(Ins)
T1205-800T	3	12	800	5		1.5	150	TO-220AB
T1205-800TD	3	12	800	5		1.5	150	TO-263
T1205-800TF	3	12	800	5		1.5	150	ITO-220AB
T1210-12C	3	12	1200	10		1.5	150	TO-220C-3
T1210-12E	3	12	1200	10		1.5	150	TO-220E-3
T1210-12EI	3	12	1200	10		1.5	150	TO-220E-3(Ins)
T1210-12T	3	12	1200	10		1.5	150	TO-220AB
T1210-12TD	3	12	1200	10		1.5	150	TO-263
T1210-12TF	3	12	1200	10		1.5	150	ITO-220AB
T1210-600C	3	12	600	10		1.5	150	TO-220C-3
T1210-600E	3	12	600	10		1.5	150	TO-220E-3
T1210-600EI	3	12	600	10		1.5	150	TO-220E-3(Ins)
T1210-600T	3	12	600	10		1.5	150	TO-220AB
T1210-600TD	3	12	600	10		1.5	150	TO-263
T1210-600TF	3	12	600	10		1.5	150	ITO-220AB
T1210-800C	3	12	800	10		1.5	150	TO-220C-3
T1210-800E	3	12	800	10		1.5	150	TO-220E-3
T1210-800EI	3	12	800	10		1.5	150	TO-220E-3(Ins)
T1210-800T	3	12	800	10		1.5	150	TO-220AB
T1210-800TD	3	12	800	10		1.5	150	TO-263
T1210-800TF	3	12	800	10		1.5	150	ITO-220AB
T1235-12C	3	12	1200	35		1.5	150	TO-220C-3
T1235-12E	3	12	1200	35		1.5	150	TO-220E-3
T1235-12EI	3	12	1200	35		1.5	150	TO-220E-3(Ins)
T1235-12T	3	12	1200	35		1.5	150	TO-220AB
T1235-12TD	3	12	1200	35		1.5	150	TO-263
T1235-12TF	3	12	1200	35		1.5	150	ITO-220AB
T1235-600C	3	12	600	35		1.5	150	TO-220C-3
T1235-600E	3	12	600	35		1.5	150	TO-220E-3
T1235-600EI	3	12	600	35		1.5	150	TO-220E-3(Ins)
T1235-600T	3	12	600	35		1.5	150	TO-220AB
T1235-600TD	3	12	600	35		1.5	150	TO-263
T1235-600TF	3	12	600	35		1.5	150	ITO-220AB
T1235-800C	3	12	800	35		1.5	150	TO-220C-3
T1235-800E	3	12	800	35		1.5	150	TO-220E-3
T1235-800EI	3	12	800	35		1.5	150	TO-220E-3(Ins)
T1235-800T	3	12	800	35		1.5	150	TO-220AB
T1235-800TD	3	12	800	35		1.5	150	TO-263
T1235-800TF	3	12	800	35		1.5	150	ITO-220AB
T1250-12C	3	12	1200	50		1.5	150	TO-220C-3
T1250-12E	3	12	1200	50		1.5	150	TO-220E-3
T1250-12EI	3	12	1200	50		1.5	150	TO-220E-3(Ins)
T1250-12T	3	12	1200	50		1.5	150	TO-220AB
T1250-12TD	3	12	1200	50		1.5	150	TO-263
T1250-12TF	3	12	1200	50		1.5	150	ITO-220AB
T1250-600C	3	12	600	50		1.5	150	TO-220C-3
T1250-600E	3	12	600	50		1.5	150	TO-220E-3
T1250-600EI	3	12	600	50		1.5	150	TO-220E-3(Ins)
T1250-600T	3	12	600	50		1.5	150	TO-220AB
T1250-600TD	3	12	600	50		1.5	150	TO-263
T1250-600TF	3	12	600	50		1.5	150	ITO-220AB
T1250-800C	3	12	800	50		1.5	150	TO-220C-3
T1250-800E	3	12	800	50		1.5	150	TO-220E-3
T1250-800EI	3	12	800	50		1.5	150	TO-220E-3(Ins)
T1250-800T	3	12	800	50		1.5	150	TO-220AB
T1250-800TD	3	12	800	50		1.5	150	TO-263
T1250-800TF	3	12	800	50		1.5	150	ITO-220AB
