BT02 Series


Lumimax Part Number
Quadrant
IT(RMS)(A)
VDRM/VRRM(V)
IGT [I-III](mA)
IGT [IV](mA)
VTM  at 25°C(V)
TJ Max.(°C)
Package





BT0210-600A
4
2
600
5
10
1.55
125

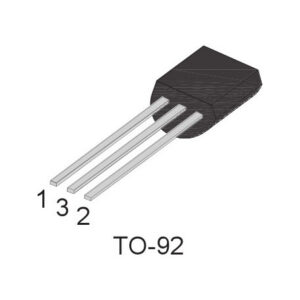

TO-92



BT0210-600D
4
2
600
5
10
1.55
125

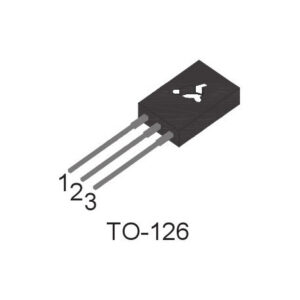

TO-126



BT0210-600DP
4
2
600
5
10
1.55
125

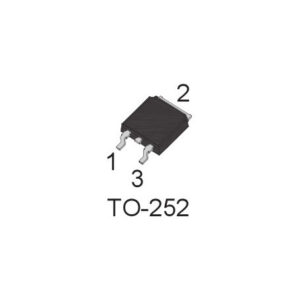

TO-252



BT0210-600N
4
2
600
5
10
1.55
125

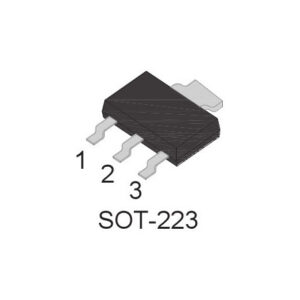

SOT-223



BT0210-800A
4
2
800
5
10
1.55
125
TO-92



BT0210-800D
4
2
800
5
10
1.55
125
TO-126



BT0210-800DP
4
2
800
5
10
1.55
125
TO-252



BT0210-800N
4
2
800
5
10
1.55
125
SOT-223



BT0225-600A
4
2
600
10
25
1.55
125
TO-92



BT0225-600D
4
2
600
10
25
1.55
125
TO-126



BT0225-600DP
4
2
600
10
25
1.55
125
TO-252



BT0225-600N
4
2
600
10
25
1.55
125
SOT-223



BT0225-800A
4
2
800
10
25
1.55
125
TO-92



BT0225-800D
4
2
800
10
25
1.55
125
TO-126



BT0225-800DP
4
2
800
10
25
1.55
125
TO-252



BT0225-800N
4
2
800
10
25
1.55
125
SOT-223
