| Lumimax Part Number | Quadrant | IT(RMS)(A) | VDRM/VRRM(V) | IGT [I-III](mA) | IGT [IV](mA) | VTM at 25°C(V) | TJ Max.(°C) | Package | |
|---|---|---|---|---|---|---|---|---|---|
 | BT0405-600A | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-92 |
| BT0405-600C | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-220C-3 |

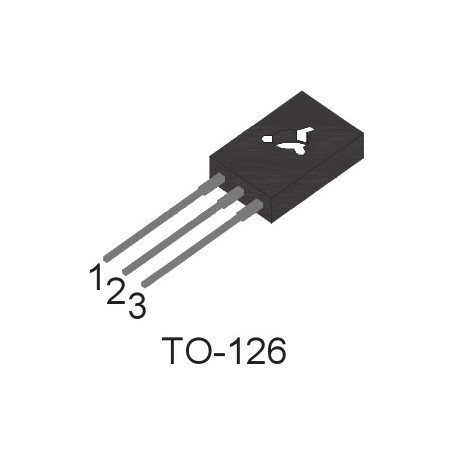

| BT0405-600D | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-126 |
| BT0405-600DP | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-252 |
| BT0405-600E | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-220E-3 |
| BT0405-600H | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-251 |
| BT0405-600T | 4 | 4 | 600 | 3 | 5 | 1.65 | 125 | TO-220AB |
| BT0405-800A | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-92 |
| BT0405-800C | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-220C-3 |
| BT0405-800D | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-126 |
| BT0405-800DP | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-252 |
| BT0405-800E | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-220E-3 |
| BT0405-800H | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-251 |
| BT0405-800T | 4 | 4 | 800 | 3 | 5 | 1.65 | 125 | TO-220AB |
| BT0410-600A | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-92 |
| BT0410-600C | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-220C-3 |
| BT0410-600D | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-126 |
| BT0410-600DP | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-252 |
| BT0410-600E | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-220E-3 |
| BT0410-600H | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-251 |
| BT0410-600T | 4 | 4 | 600 | 5 | 10 | 1.65 | 125 | TO-220AB |
| BT0410-800A | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-92 |
| BT0410-800C | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-220C-3 |
| BT0410-800D | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-126 |
| BT0410-800DP | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-252 |
| BT0410-800E | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-220E-3 |
| BT0410-800H | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-251 |
| BT0410-800T | 4 | 4 | 800 | 5 | 10 | 1.65 | 125 | TO-220AB |
| BT0425-600A | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-92 |
| BT0425-600C | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-220C-3 |
| BT0425-600D | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-126 |
| BT0425-600DP | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-252 |
| BT0425-600E | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-220E-3 |
| BT0425-600H | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-251 |
| BT0425-600T | 4 | 4 | 600 | 10 | 25 | 1.65 | 125 | TO-220AB |
| BT0425-800A | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-92 |
| BT0425-800C | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-220C-3 |
| BT0425-800D | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-126 |
| BT0425-800DP | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-252 |
| BT0425-800E | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-220E-3 |
| BT0425-800H | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-251 |
| BT0425-800T | 4 | 4 | 800 | 10 | 25 | 1.65 | 125 | TO-220AB |
