3KP seires – Lumimax Optoelectronics Tech.

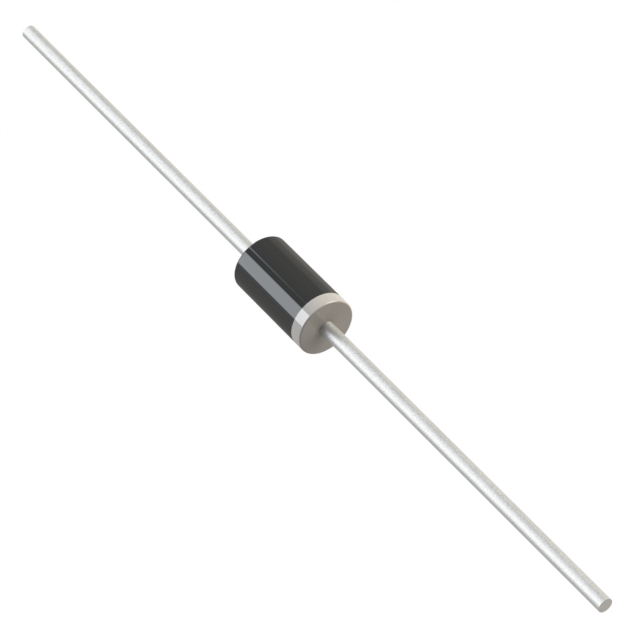

3KP Seires, 3000W, P-600




	 Part Number PPK (W) Package VRWM (V) IPP (A) VC Clamp (V) Configuration TJ Max. (°C)




	 3KP5.0A 3000 P-600 5 326.09 9.2 Unidirectional 175


	 3KP6.0A 3000 P-600 6 291.26 10.3 Unidirectional 175


	 3KP6.5A 3000 P-600 6.5 267.86 11.2 Unidirectional 175


	 3KP7.0A 3000 P-600 7 250 12 Unidirectional 175


	 3KP7.5A 3000 P-600 7.5 232.56 12.9 Unidirectional 175


	 3KP8.0A 3000 P-600 8 220.59 13.6 Unidirectional 175


	 3KP8.5A 3000 P-600 8.5 208.33 14.4 Unidirectional 175


	 3KP9.0A 3000 P-600 9 194.81 15.4 Unidirectional 175


	 3KP10A 3000 P-600 10 176.47 17 Unidirectional 175


	 3KP11A 3000 P-600 11 164.84 18.2 Unidirectional 175


	 3KP12A 3000 P-600 12 150.75 19.9 Unidirectional 175


	 3KP13A 3000 P-600 13 139.53 21.5 Unidirectional 175


	 3KP14A 3000 P-600 14 129.31 23.2 Unidirectional 175


	 3KP15A 3000 P-600 15 122.95 24.4 Unidirectional 175


	 3KP16A 3000 P-600 16 115.38 26 Unidirectional 175


	 3KP17A 3000 P-600 17 108.7 27.6 Unidirectional 175


	 3KP18A 3000 P-600 18 102.74 29.2 Unidirectional 175


	 3KP20A 3000 P-600 20 92.59 32.4 Unidirectional 175


	 3KP22A 3000 P-600 22 84.51 35.5 Unidirectional 175


	 3KP24A 3000 P-600 24 77.12 38.9 Unidirectional 175


	 3KP26A 3000 P-600 26 71.26 42.1 Unidirectional 175


	 3KP28A 3000 P-600 28 66.08 45.4 Unidirectional 175


	 3KP30A 3000 P-600 30 61.98 48.4 Unidirectional 175


	 3KP33A 3000 P-600 33 56.29 53.3 Unidirectional 175


	 3KP36A 3000 P-600 36 51.64 58.1 Unidirectional 175


	 3KP40A 3000 P-600 40 46.51 64.5 Unidirectional 175


	 3KP43A 3000 P-600 43 43.23 69.4 Unidirectional 175


	 3KP45A 3000 P-600 45 41.27 72.7 Unidirectional 175


	 3KP48A 3000 P-600 48 38.76 77.4 Unidirectional 175


	 3KP51A 3000 P-600 51 36.41 82.4 Unidirectional 175


	 3KP54A 3000 P-600 54 34.44 87.1 Unidirectional 175


	 3KP58A 3000 P-600 58 32.05 93.6 Unidirectional 175


	 3KP60A 3000 P-600 60 30.99 96.8 Unidirectional 175


	 3KP64A 3000 P-600 64 29.13 103 Unidirectional 175


	 3KP70A 3000 P-600 70 26.55 113 Unidirectional 175


	 3KP75A 3000 P-600 75 24.79 121 Unidirectional 175


	 3KP78A 3000 P-600 78 23.81 126 Unidirectional 175


	 3KP85A 3000 P-600 85 21.9 137 Unidirectional 175


	 3KP90A 3000 P-600 90 20.55 146 Unidirectional 175


	 3KP100A 3000 P-600 100 18.52 162 Unidirectional 175


	 3KP110A 3000 P-600 110 16.95 177 Unidirectional 175


	 3KP120A 3000 P-600 120 15.54 193 Unidirectional 175


	 3KP130A 3000 P-600 130 14.35 209 Unidirectional 175


	 3KP150A 3000 P-600 150 12.35 243 Unidirectional 175


	 3KP160A 3000 P-600 160 11.58 259 Unidirectional 175


	 3KP170A 3000 P-600 170 10.91 275 Unidirectional 175


	 3KP180A 3000 P-600 180 10.29 291.6 Unidirectional 175


	 3KP190A 3000 P-600 190 9.75 307.8 Unidirectional 175


	 3KP200A 3000 P-600 200 9.26 324 Unidirectional 175


	 3KP210A 3000 P-600 210 8.58 349.5 Unidirectional 175


	 3KP220A 3000 P-600 220 8.43 356 Unidirectional 175


	 3KP250A 3000 P-600 250 7.41 405 Unidirectional 175


	 3KP300A 3000 P-600 300 6.17 486 Unidirectional 175


	 3KP350A 3000 P-600 350 5.29 567 Unidirectional 175


	 3KP400A 3000 P-600 400 4.63 648 Unidirectional 175


	 3KP440A 3000 P-600 440 4.21 713 Unidirectional 175


	 3KP5.0CA 3000 P-600 5 326.09 9.2 Bidirectional 175


	 3KP6.0CA 3000 P-600 6 291.26 10.3 Bidirectional 175


	 3KP6.5CA 3000 P-600 6.5 267.86 11.2 Bidirectional 175


	 3KP7.0CA 3000 P-600 7 250 12 Bidirectional 175


	 3KP7.5CA 3000 P-600 7.5 232.56 12.9 Bidirectional 175


	 3KP8.0CA 3000 P-600 8 220.59 13.6 Bidirectional 175


	 3KP8.5CA 3000 P-600 8.5 208.33 14.4 Bidirectional 175


	 3KP9.0CA 3000 P-600 9 194.81 15.4 Bidirectional 175


	 3KP10CA 3000 P-600 10 176.47 17 Bidirectional 175


	 3KP11CA 3000 P-600 11 164.84 18.2 Bidirectional 175


	 3KP12CA 3000 P-600 12 150.75 19.9 Bidirectional 175


	 3KP13CA 3000 P-600 13 139.53 21.5 Bidirectional 175


	 3KP14CA 3000 P-600 14 129.31 23.2 Bidirectional 175


	 3KP15CA 3000 P-600 15 122.95 24.4 Bidirectional 175


	 3KP16CA 3000 P-600 16 115.38 26 Bidirectional 175


	 3KP17CA 3000 P-600 17 108.7 27.6 Bidirectional 175


	 3KP18CA 3000 P-600 18 102.74 29.2 Bidirectional 175


	 3KP20CA 3000 P-600 20 92.59 32.4 Bidirectional 175


	 3KP22CA 3000 P-600 22 84.51 35.5 Bidirectional 175


	 3KP24CA 3000 P-600 24 77.12 38.9 Bidirectional 175


	 3KP26CA 3000 P-600 26 71.26 42.1 Bidirectional 175


	 3KP28CA 3000 P-600 28 66.08 45.4 Bidirectional 175


	 3KP30CA 3000 P-600 30 61.98 48.4 Bidirectional 175


	 3KP33CA 3000 P-600 33 56.29 53.3 Bidirectional 175


	 3KP36CA 3000 P-600 36 51.64 58.1 Bidirectional 175


	 3KP40CA 3000 P-600 40 46.51 64.5 Bidirectional 175


	 3KP43CA 3000 P-600 43 43.23 69.4 Bidirectional 175


	 3KP45CA 3000 P-600 45 41.27 72.7 Bidirectional 175


	 3KP48CA 3000 P-600 48 38.76 77.4 Bidirectional 175


	 3KP51CA 3000 P-600 51 36.41 82.4 Bidirectional 175


	 3KP54CA 3000 P-600 54 34.44 87.1 Bidirectional 175


	 3KP58CA 3000 P-600 58 32.05 93.6 Bidirectional 175


	 3KP60CA 3000 P-600 60 30.99 96.8 Bidirectional 175


	 3KP64CA 3000 P-600 64 29.13 103 Bidirectional 175


	 3KP70CA 3000 P-600 70 26.55 113 Bidirectional 175


	 3KP75CA 3000 P-600 75 24.79 121 Bidirectional 175


	 3KP78CA 3000 P-600 78 23.81 126 Bidirectional 175


	 3KP85CA 3000 P-600 85 21.9 137 Bidirectional 175


	 3KP90CA 3000 P-600 90 20.55 146 Bidirectional 175


	 3KP100CA 3000 P-600 100 18.52 162 Bidirectional 175


	 3KP110CA 3000 P-600 110 16.95 177 Bidirectional 175


	 3KP120CA 3000 P-600 120 15.54 193 Bidirectional 175


	 3KP130CA 3000 P-600 130 14.35 209 Bidirectional 175


	 3KP150CA 3000 P-600 150 12.35 243 Bidirectional 175


	 3KP160CA 3000 P-600 160 11.58 259 Bidirectional 175


	 3KP170CA 3000 P-600 170 10.91 275 Bidirectional 175


	 3KP180CA 3000 P-600 180 10.29 291.6 Bidirectional 175


	 3KP190CA 3000 P-600 190 9.75 307.8 Bidirectional 175


	 3KP200CA 3000 P-600 200 9.26 324 Bidirectional 175


	 3KP210CA 3000 P-600 210 8.58 349.5 Bidirectional 175


	 3KP220CA 3000 P-600 220 8.43 356 Bidirectional 175


	 3KP250CA 3000 P-600 250 7.41 405 Bidirectional 175


	 3KP300CA 3000 P-600 300 6.17 486 Bidirectional 175


	 3KP350CA 3000 P-600 350 5.29 567 Bidirectional 175


	 3KP400CA 3000 P-600 400 4.63 648 Bidirectional 175


	 3KP440CA 3000 P-600 440 4.21 713 Bidirectional 175

Part Number	PPK (W)	Package	VRWM (V)	IPP (A)	VC Clamp (V)	Configuration	TJ Max. (°C)
3KP5.0A	3000	P-600	5	326.09	9.2	Unidirectional	175
3KP6.0A	3000	P-600	6	291.26	10.3	Unidirectional	175
3KP6.5A	3000	P-600	6.5	267.86	11.2	Unidirectional	175
3KP7.0A	3000	P-600	7	250	12	Unidirectional	175
3KP7.5A	3000	P-600	7.5	232.56	12.9	Unidirectional	175
3KP8.0A	3000	P-600	8	220.59	13.6	Unidirectional	175
3KP8.5A	3000	P-600	8.5	208.33	14.4	Unidirectional	175
3KP9.0A	3000	P-600	9	194.81	15.4	Unidirectional	175
3KP10A	3000	P-600	10	176.47	17	Unidirectional	175
3KP11A	3000	P-600	11	164.84	18.2	Unidirectional	175
3KP12A	3000	P-600	12	150.75	19.9	Unidirectional	175
3KP13A	3000	P-600	13	139.53	21.5	Unidirectional	175
3KP14A	3000	P-600	14	129.31	23.2	Unidirectional	175
3KP15A	3000	P-600	15	122.95	24.4	Unidirectional	175
3KP16A	3000	P-600	16	115.38	26	Unidirectional	175
3KP17A	3000	P-600	17	108.7	27.6	Unidirectional	175
3KP18A	3000	P-600	18	102.74	29.2	Unidirectional	175
3KP20A	3000	P-600	20	92.59	32.4	Unidirectional	175
3KP22A	3000	P-600	22	84.51	35.5	Unidirectional	175
3KP24A	3000	P-600	24	77.12	38.9	Unidirectional	175
3KP26A	3000	P-600	26	71.26	42.1	Unidirectional	175
3KP28A	3000	P-600	28	66.08	45.4	Unidirectional	175
3KP30A	3000	P-600	30	61.98	48.4	Unidirectional	175
3KP33A	3000	P-600	33	56.29	53.3	Unidirectional	175
3KP36A	3000	P-600	36	51.64	58.1	Unidirectional	175
3KP40A	3000	P-600	40	46.51	64.5	Unidirectional	175
3KP43A	3000	P-600	43	43.23	69.4	Unidirectional	175
3KP45A	3000	P-600	45	41.27	72.7	Unidirectional	175
3KP48A	3000	P-600	48	38.76	77.4	Unidirectional	175
3KP51A	3000	P-600	51	36.41	82.4	Unidirectional	175
3KP54A	3000	P-600	54	34.44	87.1	Unidirectional	175
3KP58A	3000	P-600	58	32.05	93.6	Unidirectional	175
3KP60A	3000	P-600	60	30.99	96.8	Unidirectional	175
3KP64A	3000	P-600	64	29.13	103	Unidirectional	175
3KP70A	3000	P-600	70	26.55	113	Unidirectional	175
3KP75A	3000	P-600	75	24.79	121	Unidirectional	175
3KP78A	3000	P-600	78	23.81	126	Unidirectional	175
3KP85A	3000	P-600	85	21.9	137	Unidirectional	175
3KP90A	3000	P-600	90	20.55	146	Unidirectional	175
3KP100A	3000	P-600	100	18.52	162	Unidirectional	175
3KP110A	3000	P-600	110	16.95	177	Unidirectional	175
3KP120A	3000	P-600	120	15.54	193	Unidirectional	175
3KP130A	3000	P-600	130	14.35	209	Unidirectional	175
3KP150A	3000	P-600	150	12.35	243	Unidirectional	175
3KP160A	3000	P-600	160	11.58	259	Unidirectional	175
3KP170A	3000	P-600	170	10.91	275	Unidirectional	175
3KP180A	3000	P-600	180	10.29	291.6	Unidirectional	175
3KP190A	3000	P-600	190	9.75	307.8	Unidirectional	175
3KP200A	3000	P-600	200	9.26	324	Unidirectional	175
3KP210A	3000	P-600	210	8.58	349.5	Unidirectional	175
3KP220A	3000	P-600	220	8.43	356	Unidirectional	175
3KP250A	3000	P-600	250	7.41	405	Unidirectional	175
3KP300A	3000	P-600	300	6.17	486	Unidirectional	175
3KP350A	3000	P-600	350	5.29	567	Unidirectional	175
3KP400A	3000	P-600	400	4.63	648	Unidirectional	175
3KP440A	3000	P-600	440	4.21	713	Unidirectional	175
3KP5.0CA	3000	P-600	5	326.09	9.2	Bidirectional	175
3KP6.0CA	3000	P-600	6	291.26	10.3	Bidirectional	175
3KP6.5CA	3000	P-600	6.5	267.86	11.2	Bidirectional	175
3KP7.0CA	3000	P-600	7	250	12	Bidirectional	175
3KP7.5CA	3000	P-600	7.5	232.56	12.9	Bidirectional	175
3KP8.0CA	3000	P-600	8	220.59	13.6	Bidirectional	175
3KP8.5CA	3000	P-600	8.5	208.33	14.4	Bidirectional	175
3KP9.0CA	3000	P-600	9	194.81	15.4	Bidirectional	175
3KP10CA	3000	P-600	10	176.47	17	Bidirectional	175
3KP11CA	3000	P-600	11	164.84	18.2	Bidirectional	175
3KP12CA	3000	P-600	12	150.75	19.9	Bidirectional	175
3KP13CA	3000	P-600	13	139.53	21.5	Bidirectional	175
3KP14CA	3000	P-600	14	129.31	23.2	Bidirectional	175
3KP15CA	3000	P-600	15	122.95	24.4	Bidirectional	175
3KP16CA	3000	P-600	16	115.38	26	Bidirectional	175
3KP17CA	3000	P-600	17	108.7	27.6	Bidirectional	175
3KP18CA	3000	P-600	18	102.74	29.2	Bidirectional	175
3KP20CA	3000	P-600	20	92.59	32.4	Bidirectional	175
3KP22CA	3000	P-600	22	84.51	35.5	Bidirectional	175
3KP24CA	3000	P-600	24	77.12	38.9	Bidirectional	175
3KP26CA	3000	P-600	26	71.26	42.1	Bidirectional	175
3KP28CA	3000	P-600	28	66.08	45.4	Bidirectional	175
3KP30CA	3000	P-600	30	61.98	48.4	Bidirectional	175
3KP33CA	3000	P-600	33	56.29	53.3	Bidirectional	175
3KP36CA	3000	P-600	36	51.64	58.1	Bidirectional	175
3KP40CA	3000	P-600	40	46.51	64.5	Bidirectional	175
3KP43CA	3000	P-600	43	43.23	69.4	Bidirectional	175
3KP45CA	3000	P-600	45	41.27	72.7	Bidirectional	175
3KP48CA	3000	P-600	48	38.76	77.4	Bidirectional	175
3KP51CA	3000	P-600	51	36.41	82.4	Bidirectional	175
3KP54CA	3000	P-600	54	34.44	87.1	Bidirectional	175
3KP58CA	3000	P-600	58	32.05	93.6	Bidirectional	175
3KP60CA	3000	P-600	60	30.99	96.8	Bidirectional	175
3KP64CA	3000	P-600	64	29.13	103	Bidirectional	175
3KP70CA	3000	P-600	70	26.55	113	Bidirectional	175
3KP75CA	3000	P-600	75	24.79	121	Bidirectional	175
3KP78CA	3000	P-600	78	23.81	126	Bidirectional	175
3KP85CA	3000	P-600	85	21.9	137	Bidirectional	175
3KP90CA	3000	P-600	90	20.55	146	Bidirectional	175
3KP100CA	3000	P-600	100	18.52	162	Bidirectional	175
3KP110CA	3000	P-600	110	16.95	177	Bidirectional	175
3KP120CA	3000	P-600	120	15.54	193	Bidirectional	175
3KP130CA	3000	P-600	130	14.35	209	Bidirectional	175
3KP150CA	3000	P-600	150	12.35	243	Bidirectional	175
3KP160CA	3000	P-600	160	11.58	259	Bidirectional	175
3KP170CA	3000	P-600	170	10.91	275	Bidirectional	175
3KP180CA	3000	P-600	180	10.29	291.6	Bidirectional	175
3KP190CA	3000	P-600	190	9.75	307.8	Bidirectional	175
3KP200CA	3000	P-600	200	9.26	324	Bidirectional	175
3KP210CA	3000	P-600	210	8.58	349.5	Bidirectional	175
3KP220CA	3000	P-600	220	8.43	356	Bidirectional	175
3KP250CA	3000	P-600	250	7.41	405	Bidirectional	175
3KP300CA	3000	P-600	300	6.17	486	Bidirectional	175
3KP350CA	3000	P-600	350	5.29	567	Bidirectional	175
3KP400CA	3000	P-600	400	4.63	648	Bidirectional	175
3KP440CA	3000	P-600	440	4.21	713	Bidirectional	175
