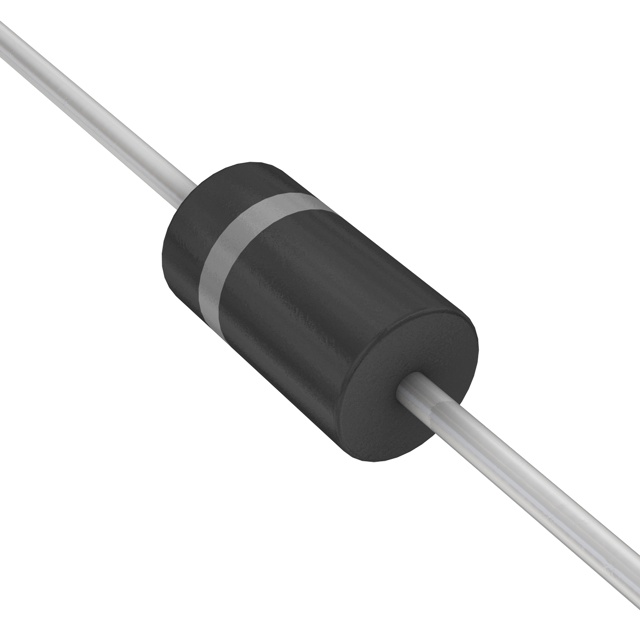

P4KE Series, 400W, DO-41




	 Part Number PPK (W) Package VRWM (V) IPP (A) VC Clamp (V) Configuration TJ Max. (°C)




	 P4KE6.8A 400 DO-41 5.8 38.1 10.5 Unidirectional 175


	 P4KE7.5A 400 DO-41 6.4 35.4 11.3 Unidirectional 175


	 P4KE8.2A 400 DO-41 7 33.06 12.1 Unidirectional 175


	 P4KE9.1A 400 DO-41 7.8 29.85 13.4 Unidirectional 175


	 P4KE10A 400 DO-41 8.6 27.59 14.5 Unidirectional 175


	 P4KE11A 400 DO-41 9.4 25.64 15.6 Unidirectional 175


	 P4KE12A 400 DO-41 10.2 23.95 16.7 Unidirectional 175


	 P4KE13A 400 DO-41 11.1 21.98 18.2 Unidirectional 175


	 P4KE15A 400 DO-41 12.8 18.87 21.2 Unidirectional 175


	 P4KE16A 400 DO-41 13.6 17.78 22.5 Unidirectional 175


	 P4KE18A 400 DO-41 15.3 15.87 25.2 Unidirectional 175


	 P4KE20A 400 DO-41 17.1 14.44 27.7 Unidirectional 175


	 P4KE22A 400 DO-41 18.8 13.07 30.6 Unidirectional 175


	 P4KE24A 400 DO-41 20.5 12.05 33.2 Unidirectional 175


	 P4KE27A 400 DO-41 23.1 10.67 37.5 Unidirectional 175


	 P4KE30A 400 DO-41 25.6 9.66 41.4 Unidirectional 175


	 P4KE33A 400 DO-41 28.2 8.75 45.7 Unidirectional 175


	 P4KE36A 400 DO-41 30.8 8.02 49.9 Unidirectional 175


	 P4KE39A 400 DO-41 33.3 7.42 53.9 Unidirectional 175


	 P4KE43A 400 DO-41 36.8 6.75 59.3 Unidirectional 175


	 P4KE47A 400 DO-41 40.2 6.17 64.8 Unidirectional 175


	 P4KE51A 400 DO-41 43.6 5.71 70.1 Unidirectional 175


	 P4KE56A 400 DO-41 47.8 5.19 77 Unidirectional 175


	 P4KE62A 400 DO-41 53 4.71 85 Unidirectional 175


	 P4KE68A 400 DO-41 58.1 4.35 92 Unidirectional 175


	 P4KE75A 400 DO-41 64.1 3.88 103 Unidirectional 175


	 P4KE82A 400 DO-41 70.1 3.54 113 Unidirectional 175


	 P4KE91A 400 DO-41 77.8 3.2 125 Unidirectional 175


	 P4KE100A 400 DO-41 85.5 2.92 137 Unidirectional 175


	 P4KE110A 400 DO-41 94 2.63 152 Unidirectional 175


	 P4KE120A 400 DO-41 102 2.42 165 Unidirectional 175


	 P4KE130A 400 DO-41 111 2.23 179 Unidirectional 175


	 P4KE150A 400 DO-41 128 1.93 207 Unidirectional 175


	 P4KE160A 400 DO-41 136 1.83 219 Unidirectional 175


	 P4KE170A 400 DO-41 145 1.71 234 Unidirectional 175


	 P4KE180A 400 DO-41 154 1.63 246 Unidirectional 175


	 P4KE200A 400 DO-41 171 1.46 274 Unidirectional 175


	 P4KE220A 400 DO-41 185 1.22 328 Unidirectional 175


	 P4KE250A 400 DO-41 214 1.16 344 Unidirectional 175


	 P4KE300A 400 DO-41 256 0.97 414 Unidirectional 175


	 P4KE350A 400 DO-41 299.3 0.83 482 Unidirectional 175


	 P4KE380A 400 DO-41 324.9 0.76 524.4 Unidirectional 175


	 P4KE400A 400 DO-41 342 0.72 552 Unidirectional 175


	 P4KE440A 400 DO-41 376.2 0.66 607.2 Unidirectional 175


	 P4KE500A 400 DO-41 427.5 0.58 690 Unidirectional 175


	 P4KE520A 400 DO-41 444.6 0.56 717.6 Unidirectional 175


	 P4KE550A 400 DO-41 470.3 0.53 759 Unidirectional 175


	 P4KE600A 400 DO-41 513 0.48 828 Unidirectional 175


	 P4KE6.8CA 400 DO-41 5.8 38.1 10.5 Bidirectional 175


	 P4KE7.5CA 400 DO-41 6.4 35.4 11.3 Bidirectional 175


	 P4KE8.2CA 400 DO-41 7 33.06 12.1 Bidirectional 175


	 P4KE9.1CA 400 DO-41 7.8 29.85 13.4 Bidirectional 175


	 P4KE10CA 400 DO-41 8.6 27.59 14.5 Bidirectional 175


	 P4KE11CA 400 DO-41 9.4 25.64 15.6 Bidirectional 175


	 P4KE12CA 400 DO-41 10.2 23.95 16.7 Bidirectional 175


	 P4KE13CA 400 DO-41 11.1 21.98 18.2 Bidirectional 175


	 P4KE15CA 400 DO-41 12.8 18.87 21.2 Bidirectional 175


	 P4KE16CA 400 DO-41 13.6 17.78 22.5 Bidirectional 175


	 P4KE18CA 400 DO-41 15.3 15.87 25.2 Bidirectional 175


	 P4KE20CA 400 DO-41 17.1 14.44 27.7 Bidirectional 175


	 P4KE22CA 400 DO-41 18.8 13.07 30.6 Bidirectional 175


	 P4KE24CA 400 DO-41 20.5 12.05 33.2 Bidirectional 175


	 P4KE27CA 400 DO-41 23.1 10.67 37.5 Bidirectional 175


	 P4KE30CA 400 DO-41 25.6 9.66 41.4 Bidirectional 175


	 P4KE33CA 400 DO-41 28.2 8.75 45.7 Bidirectional 175


	 P4KE36CA 400 DO-41 30.8 8.02 49.9 Bidirectional 175


	 P4KE39CA 400 DO-41 33.3 7.42 53.9 Bidirectional 175


	 P4KE43CA 400 DO-41 36.8 6.75 59.3 Bidirectional 175


	 P4KE47CA 400 DO-41 40.2 6.17 64.8 Bidirectional 175


	 P4KE51CA 400 DO-41 43.6 5.71 70.1 Bidirectional 175


	 P4KE56CA 400 DO-41 47.8 5.19 77 Bidirectional 175


	 P4KE62CA 400 DO-41 53 4.71 85 Bidirectional 175


	 P4KE68CA 400 DO-41 58.1 4.35 92 Bidirectional 175


	 P4KE75CA 400 DO-41 64.1 3.88 103 Bidirectional 175


	 P4KE82CA 400 DO-41 70.1 3.54 113 Bidirectional 175


	 P4KE91CA 400 DO-41 77.8 3.2 125 Bidirectional 175


	 P4KE100CA 400 DO-41 85.5 2.92 137 Bidirectional 175


	 P4KE110CA 400 DO-41 94 2.63 152 Bidirectional 175


	 P4KE120CA 400 DO-41 102 2.42 165 Bidirectional 175


	 P4KE130CA 400 DO-41 111 2.23 179 Bidirectional 175


	 P4KE150CA 400 DO-41 128 1.93 207 Bidirectional 175


	 P4KE160CA 400 DO-41 136 1.83 219 Bidirectional 175


	 P4KE170CA 400 DO-41 145 1.71 234 Bidirectional 175


	 P4KE180CA 400 DO-41 154 1.63 246 Bidirectional 175


	 P4KE200CA 400 DO-41 171 1.46 274 Bidirectional 175


	 P4KE220CA 400 DO-41 185 1.22 328 Bidirectional 175


	 P4KE250CA 400 DO-41 214 1.16 344 Bidirectional 175


	 P4KE300CA 400 DO-41 256 0.97 414 Bidirectional 175


	 P4KE350CA 400 DO-41 299.3 0.83 482 Bidirectional 175


	 P4KE380CA 400 DO-41 324.9 0.76 524.4 Bidirectional 175


	 P4KE400CA 400 DO-41 342 0.72 552 Bidirectional 175


	 P4KE440CA 400 DO-41 376.2 0.66 607.2 Bidirectional 175


	 P4KE500CA 400 DO-41 427.5 0.58 690 Bidirectional 175


	 P4KE520CA 400 DO-41 444.6 0.56 717.6 Bidirectional 175


	 P4KE550CA 400 DO-41 470.3 0.53 759 Bidirectional 175


	 P4KE600CA 400 DO-41 513 0.48 828 Bidirectional 175
