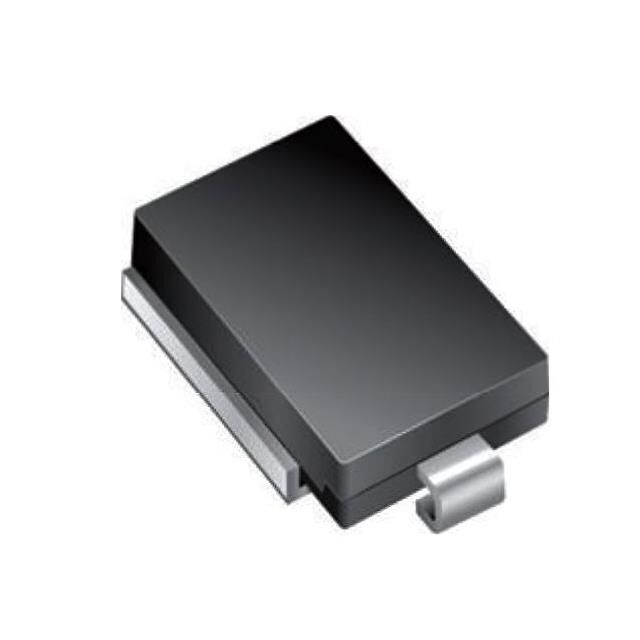

SM8S series – 6600W, DO-218AB
| Part Number | PPK (W) | Package | VRWM (V) | IPP (A) | VC Clamp (V) | Configuration | TJ Max. (°C) | |
|---|---|---|---|---|---|---|---|---|
 | SM8S10A | 6600 | DO-218AB | 10 | 388 | 17 | Unidirectional | 175 |
| SM8S11A | 6600 | DO-218AB | 11 | 363 | 18.2 | Unidirectional | 175 |
| SM8S12A | 6600 | DO-218AB | 12 | 332 | 19.9 | Unidirectional | 175 |
| SM8S13A | 6600 | DO-218AB | 13 | 307 | 21.5 | Unidirectional | 175 |
| SM8S14A | 6600 | DO-218AB | 14 | 284 | 23.2 | Unidirectional | 175 |
| SM8S15A | 6600 | DO-218AB | 15 | 270 | 24.4 | Unidirectional | 175 |
| SM8S16A | 6600 | DO-218AB | 16 | 253 | 26 | Unidirectional | 175 |
| SM8S17A | 6600 | DO-218AB | 17 | 239 | 27.6 | Unidirectional | 175 |
| SM8S18A | 6600 | DO-218AB | 18 | 226 | 29.2 | Unidirectional | 175 |
| SM8S20A | 6600 | DO-218AB | 20 | 204 | 32.4 | Unidirectional | 175 |
| SM8S22A | 6600 | DO-218AB | 22 | 186 | 35.5 | Unidirectional | 175 |
| SM8S24A | 6600 | DO-218AB | 24 | 170 | 38.9 | Unidirectional | 175 |
| SM8S26A | 6600 | DO-218AB | 26 | 157 | 42.1 | Unidirectional | 175 |
| SM8S28A | 6600 | DO-218AB | 28 | 145 | 45.4 | Unidirectional | 175 |
| SM8S30A | 6600 | DO-218AB | 30 | 136 | 48.4 | Unidirectional | 175 |
| SM8S33A | 6600 | DO-218AB | 33 | 124 | 53.3 | Unidirectional | 175 |
| SM8S36A | 6600 | DO-218AB | 36 | 114 | 58.1 | Unidirectional | 175 |
| SM8S40A | 6600 | DO-218AB | 40 | 102 | 64.5 | Unidirectional | 175 |
| SM8S43A | 6600 | DO-218AB | 43 | 95.1 | 69.4 | Unidirectional | 175 |
| SM8S48A | 6600 | DO-218AB | 48 | 85.3 | 77.4 | Unidirectional | 175 |
| SM8S58A | 6600 | DO-218AB | 58 | 70.5 | 93.6 | Unidirectional | 175 |
| SM8S64A | 6600 | DO-218AB | 64 | 64.1 | 103 | Unidirectional | 175 |
| SM8S12CA | 6600 | DO-218AB | 12 | 332 | 19.9 | Bidirectional | 175 |
| SM8S13CA | 6600 | DO-218AB | 13 | 307 | 21.5 | Bidirectional | 175 |
| SM8S14CA | 6600 | DO-218AB | 14 | 284 | 23.2 | Bidirectional | 175 |
| SM8S15CA | 6600 | DO-218AB | 15 | 270 | 24.4 | Bidirectional | 175 |
| SM8S16CA | 6600 | DO-218AB | 16 | 253 | 26 | Bidirectional | 175 |
| SM8S17CA | 6600 | DO-218AB | 17 | 239 | 27.6 | Bidirectional | 175 |
| SM8S18CA | 6600 | DO-218AB | 18 | 226 | 29.2 | Bidirectional | 175 |
| SM8S20CA | 6600 | DO-218AB | 20 | 204 | 32.4 | Bidirectional | 175 |
| SM8S22CA | 6600 | DO-218AB | 22 | 186 | 35.5 | Bidirectional | 175 |
| SM8S24CA | 6600 | DO-218AB | 24 | 170 | 38.9 | Bidirectional | 175 |
| SM8S26CA | 6600 | DO-218AB | 26 | 157 | 42.1 | Bidirectional | 175 |
| SM8S28CA | 6600 | DO-218AB | 28 | 145 | 45.4 | Bidirectional | 175 |
| SM8S30CA | 6600 | DO-218AB | 30 | 136 | 48.4 | Bidirectional | 175 |
| SM8S33CA | 6600 | DO-218AB | 33 | 124 | 53.3 | Bidirectional | 175 |
| SM8S36CA | 6600 | DO-218AB | 36 | 114 | 58.1 | Bidirectional | 175 |
