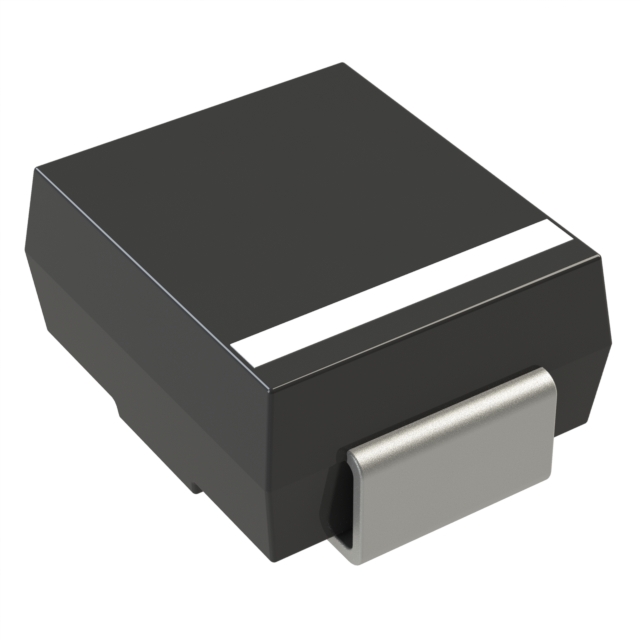

SMBJ Series, 600W, DO-214AA (SMB)
| Part Number | PPK (W) | Package | VRWM (V) | IPP (A) | VC Clamp (V) | Configuration | TJ Max. (°C) | |
|---|---|---|---|---|---|---|---|---|
 | SMBJ6.0A | 600 | DO-214AA(SMB) | 6 | 58.25 | 10.3 | Unidirectional | 150 |
| SMBJ6.5A | 600 | DO-214AA(SMB) | 6.5 | 53.57 | 11.2 | Unidirectional | 150 |
| SMBJ7.0A | 600 | DO-214AA(SMB) | 7 | 50 | 12 | Unidirectional | 150 |
| SMBJ7.5A | 600 | DO-214AA(SMB) | 7.5 | 46.51 | 12.9 | Unidirectional | 150 |
| SMBJ8.0A | 600 | DO-214AA(SMB) | 8 | 44.12 | 13.6 | Unidirectional | 150 |
| SMBJ8.5A | 600 | DO-214AA(SMB) | 8.5 | 41.67 | 14.4 | Unidirectional | 150 |
| SMBJ9.0A | 600 | DO-214AA(SMB) | 9 | 38.96 | 15.4 | Unidirectional | 150 |
| SMBJ10A | 600 | DO-214AA(SMB) | 10 | 35.29 | 17 | Unidirectional | 150 |
| SMBJ11A | 600 | DO-214AA(SMB) | 11 | 32.97 | 18.2 | Unidirectional | 150 |
| SMBJ12A | 600 | DO-214AA(SMB) | 12 | 30.15 | 19.9 | Unidirectional | 150 |
| SMBJ13A | 600 | DO-214AA(SMB) | 13 | 27.91 | 21.5 | Unidirectional | 150 |
| SMBJ14A | 600 | DO-214AA(SMB) | 14 | 25.86 | 23.2 | Unidirectional | 150 |
| SMBJ15A | 600 | DO-214AA(SMB) | 15 | 24.59 | 24.4 | Unidirectional | 150 |
| SMBJ16A | 600 | DO-214AA(SMB) | 16 | 23.08 | 26 | Unidirectional | 150 |
| SMBJ17A | 600 | DO-214AA(SMB) | 17 | 21.74 | 27.6 | Unidirectional | 150 |
| SMBJ18A | 600 | DO-214AA(SMB) | 18 | 20.55 | 29.2 | Unidirectional | 150 |
| SMBJ20A | 600 | DO-214AA(SMB) | 20 | 18.52 | 32.4 | Unidirectional | 150 |
| SMBJ22A | 600 | DO-214AA(SMB) | 22 | 16.9 | 35.5 | Unidirectional | 150 |
| SMBJ24A | 600 | DO-214AA(SMB) | 24 | 15.42 | 38.9 | Unidirectional | 150 |
| SMBJ26A | 600 | DO-214AA(SMB) | 26 | 14.25 | 42.1 | Unidirectional | 150 |
| SMBJ28A | 600 | DO-214AA(SMB) | 28 | 13.22 | 45.4 | Unidirectional | 150 |
| SMBJ30A | 600 | DO-214AA(SMB) | 30 | 12.4 | 48.4 | Unidirectional | 150 |
| SMBJ33A | 600 | DO-214AA(SMB) | 33 | 11.26 | 53.3 | Unidirectional | 150 |
| SMBJ36A | 600 | DO-214AA(SMB) | 36 | 10.33 | 58.1 | Unidirectional | 150 |
| SMBJ40A | 600 | DO-214AA(SMB) | 40 | 9.3 | 64.5 | Unidirectional | 150 |
| SMBJ43A | 600 | DO-214AA(SMB) | 43 | 8.65 | 69.4 | Unidirectional | 150 |
| SMBJ45A | 600 | DO-214AA(SMB) | 45 | 8.25 | 72.7 | Unidirectional | 150 |
| SMBJ48A | 600 | DO-214AA(SMB) | 48 | 7.75 | 77.4 | Unidirectional | 150 |
| SMBJ51A | 600 | DO-214AA(SMB) | 51 | 7.28 | 82.4 | Unidirectional | 150 |
| SMBJ54A | 600 | DO-214AA(SMB) | 54 | 6.89 | 87.1 | Unidirectional | 150 |
| SMBJ58A | 600 | DO-214AA(SMB) | 58 | 6.41 | 93.6 | Unidirectional | 150 |
| SMBJ60A | 600 | DO-214AA(SMB) | 60 | 6.2 | 96.8 | Unidirectional | 150 |
| SMBJ64A | 600 | DO-214AA(SMB) | 64 | 5.83 | 103 | Unidirectional | 150 |
| SMBJ70A | 600 | DO-214AA(SMB) | 70 | 5.31 | 113 | Unidirectional | 150 |
| SMBJ75A | 600 | DO-214AA(SMB) | 75 | 4.96 | 121 | Unidirectional | 150 |
| SMBJ78A | 600 | DO-214AA(SMB) | 78 | 4.76 | 126 | Unidirectional | 150 |
| SMBJ85A | 600 | DO-214AA(SMB) | 85 | 4.38 | 137 | Unidirectional | 150 |
| SMBJ90A | 600 | DO-214AA(SMB) | 90 | 4.11 | 146 | Unidirectional | 150 |
| SMBJ100A | 600 | DO-214AA(SMB) | 100 | 3.7 | 162 | Unidirectional | 150 |
| SMBJ110A | 600 | DO-214AA(SMB) | 110 | 3.39 | 177 | Unidirectional | 150 |
| SMBJ120A | 600 | DO-214AA(SMB) | 120 | 3.11 | 193 | Unidirectional | 150 |
| SMBJ130A | 600 | DO-214AA(SMB) | 130 | 2.87 | 209 | Unidirectional | 150 |
| SMBJ140A | 600 | DO-214AA(SMB) | 140 | 2.65 | 226.8 | Unidirectional | 150 |
| SMBJ150A | 600 | DO-214AA(SMB) | 150 | 2.47 | 243 | Unidirectional | 150 |
| SMBJ160A | 600 | DO-214AA(SMB) | 160 | 2.32 | 259 | Unidirectional | 150 |
| SMBJ170A | 600 | DO-214AA(SMB) | 170 | 2.18 | 275 | Unidirectional | 150 |
| SMBJ180A | 600 | DO-214AA(SMB) | 180 | 2.06 | 291.6 | Unidirectional | 150 |
| SMBJ188A | 600 | DO-214AA(SMB) | 188 | 1.97 | 304 | Unidirectional | 150 |
| SMBJ200A | 600 | DO-214AA(SMB) | 200 | 1.85 | 324 | Unidirectional | 150 |
| SMBJ220A | 600 | DO-214AA(SMB) | 220 | 1.69 | 356 | Unidirectional | 150 |
| SMBJ250A | 600 | DO-214AA(SMB) | 250 | 1.48 | 405 | Unidirectional | 150 |
| SMBJ300A | 600 | DO-214AA(SMB) | 300 | 1.23 | 486 | Unidirectional | 150 |
| SMBJ350A | 600 | DO-214AA(SMB) | 350 | 1.06 | 567 | Unidirectional | 150 |
| SMBJ400A | 600 | DO-214AA(SMB) | 400 | 0.93 | 648 | Unidirectional | 150 |
| SMBJ440A | 600 | DO-214AA(SMB) | 440 | 0.84 | 713 | Unidirectional | 150 |
| SMBJ5.0CA | 600 | DO-214AA(SMB) | 5 | 65.22 | 9.2 | Bidirectional | 150 |
| SMBJ6.0CA | 600 | DO-214AA(SMB) | 6 | 58.25 | 10.3 | Bidirectional | 150 |
| SMBJ6.5CA | 600 | DO-214AA(SMB) | 6.5 | 53.57 | 11.2 | Bidirectional | 150 |
| SMBJ7.0CA | 600 | DO-214AA(SMB) | 7 | 50 | 12 | Bidirectional | 150 |
| SMBJ7.5CA | 600 | DO-214AA(SMB) | 7.5 | 46.51 | 12.9 | Bidirectional | 150 |
| SMBJ8.0CA | 600 | DO-214AA(SMB) | 8 | 44.12 | 13.6 | Bidirectional | 150 |
| SMBJ8.5CA | 600 | DO-214AA(SMB) | 8.5 | 41.67 | 14.4 | Bidirectional | 150 |
| SMBJ9.0CA | 600 | DO-214AA(SMB) | 9 | 38.96 | 15.4 | Bidirectional | 150 |
| SMBJ10CA | 600 | DO-214AA(SMB) | 10 | 35.29 | 17 | Bidirectional | 150 |
| SMBJ11CA | 600 | DO-214AA(SMB) | 11 | 32.97 | 18.2 | Bidirectional | 150 |
| SMBJ12CA | 600 | DO-214AA(SMB) | 12 | 30.15 | 19.9 | Bidirectional | 150 |
| SMBJ13CA | 600 | DO-214AA(SMB) | 13 | 27.91 | 21.5 | Bidirectional | 150 |
| SMBJ14CA | 600 | DO-214AA(SMB) | 14 | 25.86 | 23.2 | Bidirectional | 150 |
| SMBJ15CA | 600 | DO-214AA(SMB) | 15 | 24.59 | 24.4 | Bidirectional | 150 |
| SMBJ16CA | 600 | DO-214AA(SMB) | 16 | 23.08 | 26 | Bidirectional | 150 |
| SMBJ17CA | 600 | DO-214AA(SMB) | 17 | 21.74 | 27.6 | Bidirectional | 150 |
| SMBJ18CA | 600 | DO-214AA(SMB) | 18 | 20.55 | 29.2 | Bidirectional | 150 |
| SMBJ20CA | 600 | DO-214AA(SMB) | 20 | 18.52 | 32.4 | Bidirectional | 150 |
| SMBJ22CA | 600 | DO-214AA(SMB) | 22 | 16.9 | 35.5 | Bidirectional | 150 |
| SMBJ24CA | 600 | DO-214AA(SMB) | 24 | 15.42 | 38.9 | Bidirectional | 150 |
| SMBJ26CA | 600 | DO-214AA(SMB) | 26 | 14.25 | 42.1 | Bidirectional | 150 |
| SMBJ28CA | 600 | DO-214AA(SMB) | 28 | 13.22 | 45.4 | Bidirectional | 150 |
| SMBJ30CA | 600 | DO-214AA(SMB) | 30 | 12.4 | 48.4 | Bidirectional | 150 |
| SMBJ33CA | 600 | DO-214AA(SMB) | 33 | 11.26 | 53.3 | Bidirectional | 150 |
| SMBJ36CA | 600 | DO-214AA(SMB) | 36 | 10.33 | 58.1 | Bidirectional | 150 |
| SMBJ40CA | 600 | DO-214AA(SMB) | 40 | 9.3 | 64.5 | Bidirectional | 150 |
| SMBJ43CA | 600 | DO-214AA(SMB) | 43 | 8.65 | 69.4 | Bidirectional | 150 |
| SMBJ45CA | 600 | DO-214AA(SMB) | 45 | 8.25 | 72.7 | Bidirectional | 150 |
| SMBJ48CA | 600 | DO-214AA(SMB) | 48 | 7.75 | 77.4 | Bidirectional | 150 |
| SMBJ51CA | 600 | DO-214AA(SMB) | 51 | 7.28 | 82.4 | Bidirectional | 150 |
| SMBJ54CA | 600 | DO-214AA(SMB) | 54 | 6.89 | 87.1 | Bidirectional | 150 |
| SMBJ58CA | 600 | DO-214AA(SMB) | 58 | 6.41 | 93.6 | Bidirectional | 150 |
| SMBJ60CA | 600 | DO-214AA(SMB) | 60 | 6.2 | 96.8 | Bidirectional | 150 |
| SMBJ64CA | 600 | DO-214AA(SMB) | 64 | 5.83 | 103 | Bidirectional | 150 |
| SMBJ70CA | 600 | DO-214AA(SMB) | 70 | 5.31 | 113 | Bidirectional | 150 |
| SMBJ75CA | 600 | DO-214AA(SMB) | 75 | 4.96 | 121 | Bidirectional | 150 |
| SMBJ78CA | 600 | DO-214AA(SMB) | 78 | 4.76 | 126 | Bidirectional | 150 |
| SMBJ85CA | 600 | DO-214AA(SMB) | 85 | 4.38 | 137 | Bidirectional | 150 |
| SMBJ90CA | 600 | DO-214AA(SMB) | 90 | 4.11 | 146 | Bidirectional | 150 |
| SMBJ100CA | 600 | DO-214AA(SMB) | 100 | 3.7 | 162 | Bidirectional | 150 |
| SMBJ110CA | 600 | DO-214AA(SMB) | 110 | 3.39 | 177 | Bidirectional | 150 |
| SMBJ120CA | 600 | DO-214AA(SMB) | 120 | 3.11 | 193 | Bidirectional | 150 |
| SMBJ130CA | 600 | DO-214AA(SMB) | 130 | 2.87 | 209 | Bidirectional | 150 |
| SMBJ140CA | 600 | DO-214AA(SMB) | 140 | 2.65 | 226.8 | Bidirectional | 150 |
| SMBJ150CA | 600 | DO-214AA(SMB) | 150 | 2.47 | 243 | Bidirectional | 150 |
| SMBJ160CA | 600 | DO-214AA(SMB) | 160 | 2.32 | 259 | Bidirectional | 150 |
| SMBJ170CA | 600 | DO-214AA(SMB) | 170 | 2.18 | 275 | Bidirectional | 150 |
| SMBJ180CA | 600 | DO-214AA(SMB) | 180 | 2.06 | 291.6 | Bidirectional | 150 |
| SMBJ188CA | 600 | DO-214AA(SMB) | 188 | 1.97 | 304 | Bidirectional | 150 |
| SMBJ200CA | 600 | DO-214AA(SMB) | 200 | 1.85 | 324 | Bidirectional | 150 |
| SMBJ220CA | 600 | DO-214AA(SMB) | 220 | 1.69 | 356 | Bidirectional | 150 |
| SMBJ250CA | 600 | DO-214AA(SMB) | 250 | 1.48 | 405 | Bidirectional | 150 |
| SMBJ300CA | 600 | DO-214AA(SMB) | 300 | 1.23 | 486 | Bidirectional | 150 |
| SMBJ350CA | 600 | DO-214AA(SMB) | 350 | 1.06 | 567 | Bidirectional | 150 |
| SMBJ400CA | 600 | DO-214AA(SMB) | 400 | 0.93 | 648 | Bidirectional | 150 |
| SMBJ440CA | 600 | DO-214AA(SMB) | 440 | 0.84 | 713 | Bidirectional | 150 |
