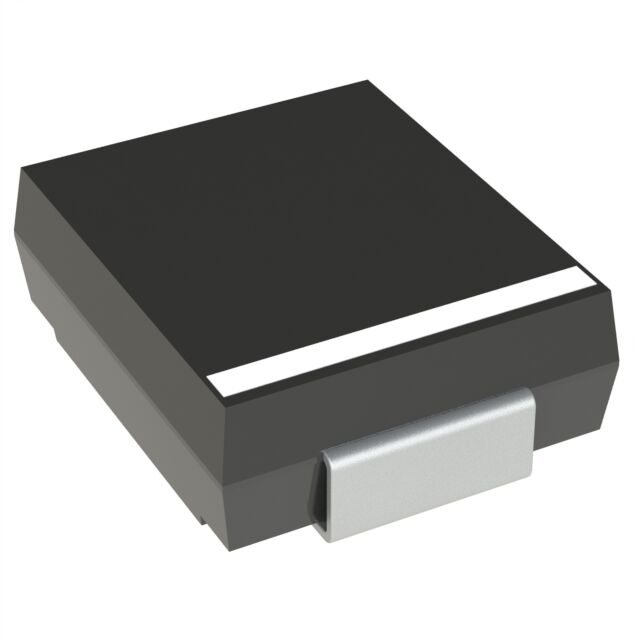

SMCJ Series, 1500W, DO-214AB (SMC)
| Part Number | PPK (W) | Package | VRWM (V) | IPP (A) | VC Clamp (V) | Configuration | TJ Max. (°C) | |
|---|---|---|---|---|---|---|---|---|
 | SMCJ5.0A | 1500 | DO-214AB(SMC) | 5 | 163.04 | 9.2 | Unidirectional | 150 |
| SMCJ6.0A | 1500 | DO-214AB(SMC) | 6 | 145.63 | 10.3 | Unidirectional | 150 |
| SMCJ6.5A | 1500 | DO-214AB(SMC) | 6.5 | 133.93 | 11.2 | Unidirectional | 150 |
| SMCJ7.0A | 1500 | DO-214AB(SMC) | 7 | 125 | 12 | Unidirectional | 150 |
| SMCJ7.5A | 1500 | DO-214AB(SMC) | 7.5 | 116.28 | 12.9 | Unidirectional | 150 |
| SMCJ8.0A | 1500 | DO-214AB(SMC) | 8 | 110.29 | 13.6 | Unidirectional | 150 |
| SMCJ8.5A | 1500 | DO-214AB(SMC) | 8.5 | 104.17 | 14.4 | Unidirectional | 150 |
| SMCJ9.0A | 1500 | DO-214AB(SMC) | 9 | 97.4 | 15.4 | Unidirectional | 150 |
| SMCJ10A | 1500 | DO-214AB(SMC) | 10 | 88.24 | 17 | Unidirectional | 150 |
| SMCJ11A | 1500 | DO-214AB(SMC) | 11 | 82.42 | 18.2 | Unidirectional | 150 |
| SMCJ12A | 1500 | DO-214AB(SMC) | 12 | 75.38 | 19.9 | Unidirectional | 150 |
| SMCJ13A | 1500 | DO-214AB(SMC) | 13 | 69.77 | 21.5 | Unidirectional | 150 |
| SMCJ14A | 1500 | DO-214AB(SMC) | 14 | 64.66 | 23.2 | Unidirectional | 150 |
| SMCJ15A | 1500 | DO-214AB(SMC) | 15 | 61.48 | 24.4 | Unidirectional | 150 |
| SMCJ16A | 1500 | DO-214AB(SMC) | 16 | 57.69 | 26 | Unidirectional | 150 |
| SMCJ17A | 1500 | DO-214AB(SMC) | 17 | 54.35 | 27.6 | Unidirectional | 150 |
| SMCJ18A | 1500 | DO-214AB(SMC) | 18 | 51.37 | 29.2 | Unidirectional | 150 |
| SMCJ20A | 1500 | DO-214AB(SMC) | 20 | 46.3 | 32.4 | Unidirectional | 150 |
| SMCJ22A | 1500 | DO-214AB(SMC) | 22 | 42.25 | 35.5 | Unidirectional | 150 |
| SMCJ24A | 1500 | DO-214AB(SMC) | 24 | 38.56 | 38.9 | Unidirectional | 150 |
| SMCJ26A | 1500 | DO-214AB(SMC) | 26 | 35.63 | 42.1 | Unidirectional | 150 |
| SMCJ28A | 1500 | DO-214AB(SMC) | 28 | 33.04 | 45.4 | Unidirectional | 150 |
| SMCJ30A | 1500 | DO-214AB(SMC) | 30 | 30.99 | 48.4 | Unidirectional | 150 |
| SMCJ33A | 1500 | DO-214AB(SMC) | 33 | 28.14 | 53.3 | Unidirectional | 150 |
| SMCJ36A | 1500 | DO-214AB(SMC) | 36 | 25.82 | 58.1 | Unidirectional | 150 |
| SMCJ40A | 1500 | DO-214AB(SMC) | 40 | 23.26 | 64.5 | Unidirectional | 150 |
| SMCJ43A | 1500 | DO-214AB(SMC) | 43 | 21.61 | 69.4 | Unidirectional | 150 |
| SMCJ45A | 1500 | DO-214AB(SMC) | 45 | 20.63 | 72.7 | Unidirectional | 150 |
| SMCJ48A | 1500 | DO-214AB(SMC) | 48 | 19.38 | 77.4 | Unidirectional | 150 |
| SMCJ51A | 1500 | DO-214AB(SMC) | 51 | 18.2 | 82.4 | Unidirectional | 150 |
| SMCJ54A | 1500 | DO-214AB(SMC) | 54 | 17.22 | 87.1 | Unidirectional | 150 |
| SMCJ58A | 1500 | DO-214AB(SMC) | 58 | 16.03 | 93.6 | Unidirectional | 150 |
| SMCJ60A | 1500 | DO-214AB(SMC) | 60 | 15.5 | 96.8 | Unidirectional | 150 |
| SMCJ64A | 1500 | DO-214AB(SMC) | 64 | 14.56 | 103 | Unidirectional | 150 |
| SMCJ70A | 1500 | DO-214AB(SMC) | 70 | 13.27 | 113 | Unidirectional | 150 |
| SMCJ75A | 1500 | DO-214AB(SMC) | 75 | 12.4 | 121 | Unidirectional | 150 |
| SMCJ78A | 1500 | DO-214AB(SMC) | 78 | 11.9 | 126 | Unidirectional | 150 |
| SMCJ85A | 1500 | DO-214AB(SMC) | 85 | 10.95 | 137 | Unidirectional | 150 |
| SMCJ90A | 1500 | DO-214AB(SMC) | 90 | 10.27 | 146 | Unidirectional | 150 |
| SMCJ100A | 1500 | DO-214AB(SMC) | 100 | 9.26 | 162 | Unidirectional | 150 |
| SMCJ110A | 1500 | DO-214AB(SMC) | 110 | 8.47 | 177 | Unidirectional | 150 |
| SMCJ120A | 1500 | DO-214AB(SMC) | 120 | 7.77 | 193 | Unidirectional | 150 |
| SMCJ130A | 1500 | DO-214AB(SMC) | 130 | 7.18 | 209 | Unidirectional | 150 |
| SMCJ150A | 1500 | DO-214AB(SMC) | 150 | 6.17 | 243 | Unidirectional | 150 |
| SMCJ160A | 1500 | DO-214AB(SMC) | 160 | 5.79 | 259 | Unidirectional | 150 |
| SMCJ170A | 1500 | DO-214AB(SMC) | 170 | 5.45 | 275 | Unidirectional | 150 |
| SMCJ180A | 1500 | DO-214AB(SMC) | 180 | 5.14 | 291.6 | Unidirectional | 150 |
| SMCJ200A | 1500 | DO-214AB(SMC) | 200 | 4.6 | 324 | Unidirectional | 150 |
| SMCJ220A | 1500 | DO-214AB(SMC) | 220 | 4.2 | 356 | Unidirectional | 150 |
| SMCJ250A | 1500 | DO-214AB(SMC) | 250 | 3.7 | 405 | Unidirectional | 150 |
| SMCJ300A | 1500 | DO-214AB(SMC) | 300 | 3.1 | 486 | Unidirectional | 150 |
| SMCJ350A | 1500 | DO-214AB(SMC) | 350 | 2.6 | 567 | Unidirectional | 150 |
| SMCJ400A | 1500 | DO-214AB(SMC) | 400 | 2.3 | 648 | Unidirectional | 150 |
| SMCJ440A | 1500 | DO-214AB(SMC) | 440 | 2.1 | 713 | Unidirectional | 150 |
| SMCJ5.0CA | 1500 | DO-214AB(SMC) | 5 | 163.04 | 9.2 | Bidirectional | 150 |
| SMCJ6.0CA | 1500 | DO-214AB(SMC) | 6 | 145.63 | 10.3 | Bidirectional | 150 |
| SMCJ6.5CA | 1500 | DO-214AB(SMC) | 6.5 | 133.93 | 11.2 | Bidirectional | 150 |
| SMCJ7.0CA | 1500 | DO-214AB(SMC) | 7 | 125 | 12 | Bidirectional | 150 |
| SMCJ7.5CA | 1500 | DO-214AB(SMC) | 7.5 | 116.28 | 12.9 | Bidirectional | 150 |
| SMCJ8.0CA | 1500 | DO-214AB(SMC) | 8 | 110.29 | 13.6 | Bidirectional | 150 |
| SMCJ8.5CA | 1500 | DO-214AB(SMC) | 8.5 | 104.17 | 14.4 | Bidirectional | 150 |
| SMCJ9.0CA | 1500 | DO-214AB(SMC) | 9 | 97.4 | 15.4 | Bidirectional | 150 |
| SMCJ10CA | 1500 | DO-214AB(SMC) | 10 | 88.24 | 17 | Bidirectional | 150 |
| SMCJ11CA | 1500 | DO-214AB(SMC) | 11 | 82.42 | 18.2 | Bidirectional | 150 |
| SMCJ12CA | 1500 | DO-214AB(SMC) | 12 | 75.38 | 19.9 | Bidirectional | 150 |
| SMCJ13CA | 1500 | DO-214AB(SMC) | 13 | 69.77 | 21.5 | Bidirectional | 150 |
| SMCJ14CA | 1500 | DO-214AB(SMC) | 14 | 64.66 | 23.2 | Bidirectional | 150 |
| SMCJ15CA | 1500 | DO-214AB(SMC) | 15 | 61.48 | 24.4 | Bidirectional | 150 |
| SMCJ16CA | 1500 | DO-214AB(SMC) | 16 | 57.69 | 26 | Bidirectional | 150 |
| SMCJ17CA | 1500 | DO-214AB(SMC) | 17 | 54.35 | 27.6 | Bidirectional | 150 |
| SMCJ18CA | 1500 | DO-214AB(SMC) | 18 | 51.37 | 29.2 | Bidirectional | 150 |
| SMCJ20CA | 1500 | DO-214AB(SMC) | 20 | 46.3 | 32.4 | Bidirectional | 150 |
| SMCJ22CA | 1500 | DO-214AB(SMC) | 22 | 42.25 | 35.5 | Bidirectional | 150 |
| SMCJ24CA | 1500 | DO-214AB(SMC) | 24 | 38.56 | 38.9 | Bidirectional | 150 |
| SMCJ26CA | 1500 | DO-214AB(SMC) | 26 | 35.63 | 42.1 | Bidirectional | 150 |
| SMCJ28CA | 1500 | DO-214AB(SMC) | 28 | 33.04 | 45.4 | Bidirectional | 150 |
| SMCJ30CA | 1500 | DO-214AB(SMC) | 30 | 30.99 | 48.4 | Bidirectional | 150 |
| SMCJ33CA | 1500 | DO-214AB(SMC) | 33 | 28.14 | 53.3 | Bidirectional | 150 |
| SMCJ36CA | 1500 | DO-214AB(SMC) | 36 | 25.82 | 58.1 | Bidirectional | 150 |
| SMCJ40CA | 1500 | DO-214AB(SMC) | 40 | 23.26 | 64.5 | Bidirectional | 150 |
| SMCJ43CA | 1500 | DO-214AB(SMC) | 43 | 21.61 | 69.4 | Bidirectional | 150 |
| SMCJ45CA | 1500 | DO-214AB(SMC) | 45 | 20.63 | 72.7 | Bidirectional | 150 |
| SMCJ48CA | 1500 | DO-214AB(SMC) | 48 | 19.38 | 77.4 | Bidirectional | 150 |
| SMCJ51CA | 1500 | DO-214AB(SMC) | 51 | 18.2 | 82.4 | Bidirectional | 150 |
| SMCJ54CA | 1500 | DO-214AB(SMC) | 54 | 17.22 | 87.1 | Bidirectional | 150 |
| SMCJ58CA | 1500 | DO-214AB(SMC) | 58 | 16.03 | 93.6 | Bidirectional | 150 |
| SMCJ60CA | 1500 | DO-214AB(SMC) | 60 | 15.5 | 96.8 | Bidirectional | 150 |
| SMCJ64CA | 1500 | DO-214AB(SMC) | 64 | 14.56 | 103 | Bidirectional | 150 |
| SMCJ70CA | 1500 | DO-214AB(SMC) | 70 | 13.27 | 113 | Bidirectional | 150 |
| SMCJ75CA | 1500 | DO-214AB(SMC) | 75 | 12.4 | 121 | Bidirectional | 150 |
| SMCJ78CA | 1500 | DO-214AB(SMC) | 78 | 11.9 | 126 | Bidirectional | 150 |
| SMCJ85CA | 1500 | DO-214AB(SMC) | 85 | 10.95 | 137 | Bidirectional | 150 |
| SMCJ90CA | 1500 | DO-214AB(SMC) | 90 | 10.27 | 146 | Bidirectional | 150 |
| SMCJ100CA | 1500 | DO-214AB(SMC) | 100 | 9.26 | 162 | Bidirectional | 150 |
| SMCJ110CA | 1500 | DO-214AB(SMC) | 110 | 8.47 | 177 | Bidirectional | 150 |
| SMCJ120CA | 1500 | DO-214AB(SMC) | 120 | 7.77 | 193 | Bidirectional | 150 |
| SMCJ130CA | 1500 | DO-214AB(SMC) | 130 | 7.18 | 209 | Bidirectional | 150 |
| SMCJ150CA | 1500 | DO-214AB(SMC) | 150 | 6.17 | 243 | Bidirectional | 150 |
| SMCJ160CA | 1500 | DO-214AB(SMC) | 160 | 5.79 | 259 | Bidirectional | 150 |
| SMCJ170CA | 1500 | DO-214AB(SMC) | 170 | 5.45 | 275 | Bidirectional | 150 |
| SMCJ180CA | 1500 | DO-214AB(SMC) | 180 | 5.14 | 291.6 | Bidirectional | 150 |
| SMCJ200CA | 1500 | DO-214AB(SMC) | 200 | 4.6 | 324 | Bidirectional | 150 |
| SMCJ220CA | 1500 | DO-214AB(SMC) | 220 | 4.2 | 356 | Bidirectional | 150 |
| SMCJ250CA | 1500 | DO-214AB(SMC) | 250 | 3.7 | 405 | Bidirectional | 150 |
| SMCJ300CA | 1500 | DO-214AB(SMC) | 300 | 3.1 | 486 | Bidirectional | 150 |
| SMCJ350CA | 1500 | DO-214AB(SMC) | 350 | 2.6 | 567 | Bidirectional | 150 |
| SMCJ400CA | 1500 | DO-214AB(SMC) | 400 | 2.3 | 648 | Bidirectional | 150 |
| SMCJ440CA | 1500 | DO-214AB(SMC) | 440 | 2.1 | 713 | Bidirectional | 150 |
